90 Degrees Clip-on Soft-Close Blind Corner Hinge TCH-14201 090.45.S

Produt Description

Blind Corner cabinet hinge with clip-on for easy connect and disconnect the hinge from the mounting plate..

Product Specifications

  • Opening angle: 95°
  • Closing type: Soft Close
  • Mounting type: Screw-on
  • Application: Frameless
  • Diameter of hinge cup: 35mm
  • Height of hinge cup: 11.5mm
  • Boring distance range: 3-7 mm
  • Distance of cup holes centers: 45mm
  • Door thickness: 14-21mm
  • Finishing: Nickel plated
  • Main material: Cold-rolled steel
  • Material thickness: 0.8-1.2-1.2mm

Product Resources

INSTRUCTIONS CATALOG

Mounting plates and accessories

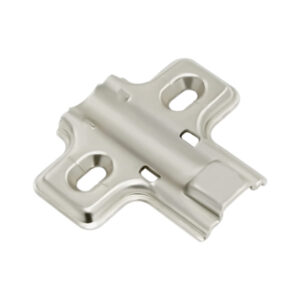

TCH-14201 37.H0.L02

Frameless Clip-on Mounting Plate H0
