Full Overlay Clip-on Soft-Close 3D Hinge TCH-11302 F.45.S

Produt Description

European style hinge with clip-on for easy connect and disconnect the hinge from the mounting plate..

Product Specifications

  • Opening angle: 105°
  • Closing type: Soft Close
  • Overly: Full Overlay
  • Mounting type: Screw-on
  • Application: Frameless
  • Diameter of hinge cup: 35mm
  • Height of hinge cup: 11.5mm
  • Boring distance range: 3-7 mm
  • Distance of cup holes centers: 45mm
  • Door thickness: 14-21mm
  • Finishing: Nickel plated
  • Main material: Cold-rolled steel
  • Material thickness: 0.8-1.2-1.2mm

Product Resources


Mounting plates and accessories

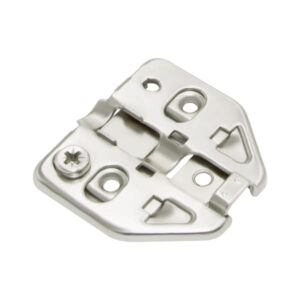

TCH-11302 37.H0.D02

Frameless Clip-on 3D Mounting Plate H0 for Full Overlay

TCH-10000 A.C.N06.BT

Hinge arm cover caps, Available with TOUCH embossed logo

TCH-10000 C.C.N06.LX

Hinge cup cover caps, Available with TOUCH embossed logo
