Half Overlay Latch Soft-Close Hinge TCH-11306 H.45.D
Produt Description
European style hinge with new clip-on (LATCH) for easy and secure connect and disconnect the hinge from the mounting plate
Product Specifications
- Opening angle: 105°
- Closing type: Soft Close
- Overly: Half Overlay
- Mounting type: 8mm Press-in dowels
- Application: Face Frame / Frameless
- Diameter of hinge cup: 35mm
- Height of hinge cup: 11.5mm
- Boring distance range: 3-7 mm
- Distance of cup holes centers: 45mm
- Door thickness: 14-21mm
- Finishing: Nickel plated
- Main material: Cold-rolled steel
- Material thickness: 0.8-1.2-1.2mm
Product Resources
Mounting plates and accessories

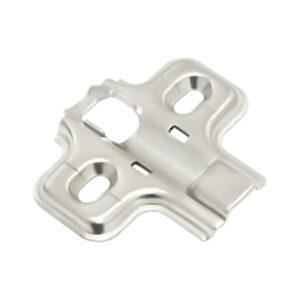

TCH-11306 37.H0.B02
Frameless Latch Mounting Plate H0 for 3/8 Inch Half Overlay

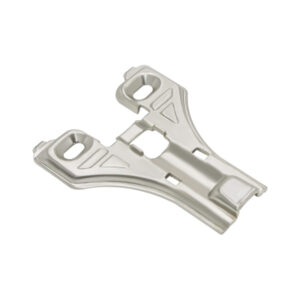

TCH-11306 10.H0.F02
Face Frame Latch Mounting Plate H0 for 3/8 Inch Half Overlay

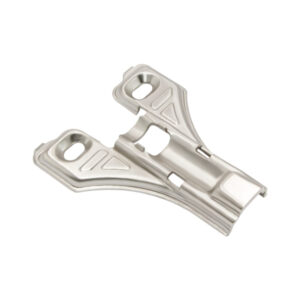

TCH-11306 10.H3.F02
Face Frame Latch Mounting Plate H3 for 1/4 Inch Overlay
TCH-10000 A.C.N06.BT
Hinge arm cover caps, Available with TOUCH embossed logo
TCH-10000 C.C.N06.BT
Hinge cup cover caps, Available with TOUCH embossed logo
