• TCH-23404 Series
Clip-On Push-Open Soft Close Undermount
Concealed drawer runners featuring push-open and soft-close features. Allows the push latch mechanism drawer to open effortlessly with a gentle touch on the drawer front, while also offering a soft-close feature for quiet closing. Streamlined concealed design facilitates easy installation, and durable runners guarantee consistently smooth and controlled drawer glide.
✓ Push-Open & Soft-Close
✓ Fits 16mm & 19mm Thickness
✓ 6-Way Adjustment
✓ 75lb (34kg) Capacity
Touch to Open, Damped to Close

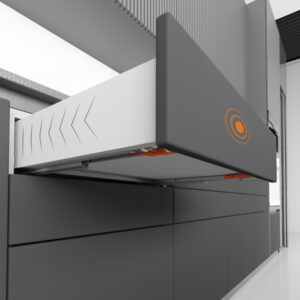

Crafted with precision engineering and advanced features, designed to be concealed beneath the drawer for a seamless and elegant solution.
• Design & Installation
Concealed Installation in Frameless and Face Frame Cabinets
Streamlined concealed design facilitates easy installation. Durable runners guarantee consistently smooth and controlled drawer glide across diverse configurations.
✓Cabinet Suitability: Ideal for both frameless and face frame cabinets.
✓ Available Lengths: Offered in lengths ranging from 305mm (12″) to 533mm (21″).
• Performance & Adjustability
Push Latch Opening with Soft-Close Return
Allows the push latch mechanism drawer to open effortlessly with a gentle touch on the drawer front, while also offering a soft-close feature for quiet closing.
✓ Dimensional Adjustment: Six-way dimensional adjustment clip device.
✓ Depth Adjustment: Elongated holes for depth adjustment.
• Specifications
Fits 16mm and 19mm Drawer Sides
Engineered for maximum versatility, these slides accommodate specific material thicknesses, providing secure and stable mounting solutions.
✓ Material Fit: Compatible with material thicknesses of 16mm (5/8″) and 19mm (3/4″).
✓ Load Capacity: 34kg (75lb) Load capacity.
Where to Use Push-Open Soft-Close Slides
Clip-On Push-Open Soft Close Undermount Slides are suitable for a wide range of handle-less residential and commercial applications requiring premium functionality.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
75 lb / 34 kg
Load Capacity
16 & 19 mm
Panel Thickness
6-Way
Adjustment Clip
Push & Soft-Close
Opening Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
