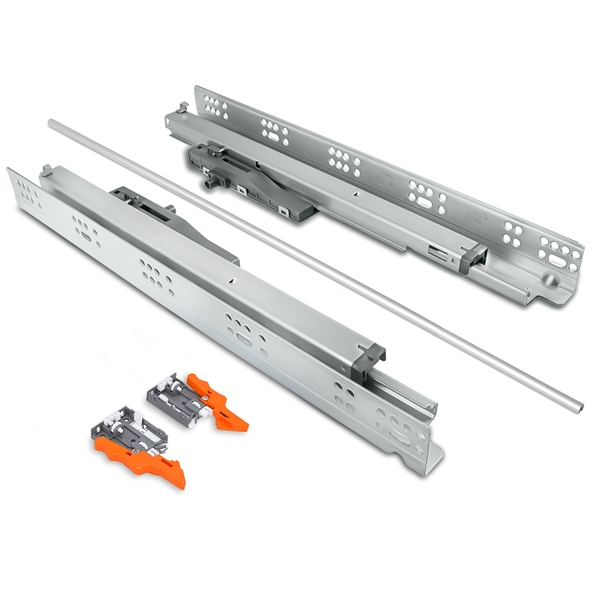

• TCH-23403.S Series
Push-Open Soft Close Synchronized Undermount
Concealed drawer runners featuring a synchronized push-open and soft-close mechanism perfectly suited for modern cabinetry. Ensures quiet and smooth closing through the integrated soft closing mechanism. Streamlined concealed design allows for effortless installation, and durable runners ensure consistently smooth and controlled drawer glide.
✓ Push-Open & Soft-Close
✓ Fits 16mm & 19mm Thickness
✓ Synchronized Motion
✓ 75lb (34kg) Capacity
Motion Sync for Wide Drawer Stability
Crafted with precision engineering and advanced features, designed to be concealed beneath the drawer for a seamless and elegant solution.
• Design & Installation
Concealed Installation in Frameless and Face Frame Cabinets
Streamlined concealed design allows for effortless installation. Durable runners ensure consistently smooth and controlled drawer glide.
✓ Cabinet Suitability: Suited for frameless and blocked-out face frame cabinets.
✓ Available Lengths: Offered in lengths from 305mm (12″) to 610mm (24″).
• Performance & Adjustability
Touch to Open, Damped to Close
Ensures quiet and smooth closing through the integrated soft closing mechanism, while push-open functionality allows effortless access.
✓ Synchronized Motion System: Synchronized motion system for optimal performance.
✓ Dimensional Adjustment: Six-way dimensional adjustment clip device.
✓ Depth Adjustment: Elongated holes for depth adjustment.
• Specifications
Fits 16mm and 19mm Drawer Sides
Engineered for maximum versatility, these slides accommodate specific material thicknesses, providing secure and stable mounting solutions.
✓ Material Fit: Compatible with material thicknesses of 16mm (5/8″) and 19mm (3/4″).
✓ Load Capacity: 34kg (75lb) Load capacity.

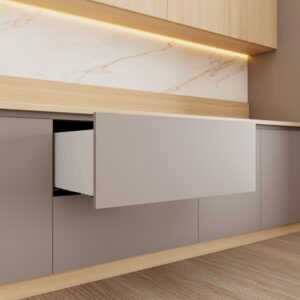

Where to Use Synchronized Push-Open Soft-Close Slides
Push-Open Soft Close Synchronized Undermount Slides are suitable for a wide range of handle-less residential and commercial applications requiring premium functionality.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
75 lb / 34 kg
Load Capacity
16 & 19 mm
Panel Thickness
6-Way
Adjustment Clip
Push & Soft-Close
Opening Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
