• TCH-23304 Series
Clip-On Push-Open Undermount Slides from 9" to 24"
Clip-on push-open undermount slides with concealed runners and touch-release opening.Opens with a gentle touch on the drawer front via the push latch mechanism. Streamlined concealed design ensures easy installation, while durable runners provide consistently smooth and controlled drawer glide.
✓ Push-Open Functionality
✓ Fits 16mm & 19mm Thickness
✓ 9" · 12" · 15" · 18" · 21" · 24" lengths
✓ 6-Way Adjustment
✓ 75lb (34kg) Capacity
Touch-Release Opening Without Handles

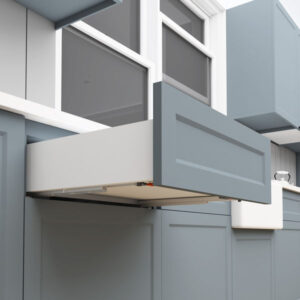

Crafted with precision engineering and advanced features, designed to be concealed beneath the drawer for a seamless and elegant solution.
• Design & Installation
Concealed Installation in Frameless and Face Frame Cabinets
Streamlined concealed design ensures easy installation. Durable runners provide consistently smooth and controlled drawer glide.
✓ Cabinet Suitability: Suited for frameless and face frame cabinets.
✓ Available Lengths: Offered in lengths from 229mm (9″) to 610mm (24″).
• Performance & Adjustability
Push Latch Opening with Six-Way Adjustment
Facilitates effortless opening of the push latch mechanism drawer with a gentle touch on the drawer front.
✓ Dimensional Adjustment: Six-way dimensional adjustment clip device.
✓ Depth Adjustment: Elongated holes for depth adjustment.
• Specifications
Fits 16mm and 19mm Drawer Sides
Engineered for maximum versatility, these slides accommodate specific material thicknesses, providing secure and stable mounting solutions.
✓ Material Fit: Compatible with material thicknesses of 16mm (5/8″) and 19mm (3/4″).
✓ Load Capacity: 34kg (75lb) Load capacity.
Where to Use Clip-On Push-Open Slides
Clip-On Push-Open Undermount Slides are suitable for a wide range of handle-less residential and commercial applications.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
75 lb / 34 kg
Load Capacity
16 & 19 mm
Panel Thickness
6-Way
Adjustment Clip
Push-Open
Opening Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
