Inset Latch Self-Close Hinge TCH-11206 i.45.S

Produt Description

European style hinge with new clip-on (LATCH) for easy and secure connect and disconnect the hinge from the mounting plate..

Product Specifications

  • Opening angle: 110°
  • Closing type: Self Close
  • Overly: Inset
  • Mounting type: Screw-on
  • Application: Frameless
  • Diameter of hinge cup: 35mm
  • Height of hinge cup: 11.3mm
  • Boring distance range: 3-7 mm
  • Distance of cup holes centers: 45mm
  • Door thickness: 14-21mm
  • Finishing: Nickel plated
  • Main material: Cold-rolled steel
  • Material thickness: 0.8-1.2-1.2mm

Product Resources

INSTRUCTIONS CATALOG

Mounting plates and accessories

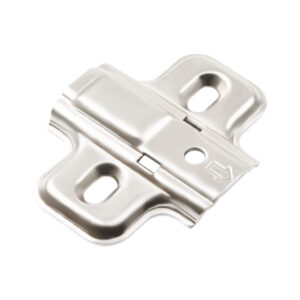

TCH-11206 37.H0.B02

Frameless Latch Mounting Plate H0

TCH-11206 37.H0.B02.E

Frameless Latch Mounting Plate with Euro Screws H0

TCH-10000 A.C.N06.BT

Hinge arm cover caps, Available with TOUCH embossed logo

TCH-10000 C.C.N06.BT

Hinge cup cover caps, Available with TOUCH embossed logo
