Description

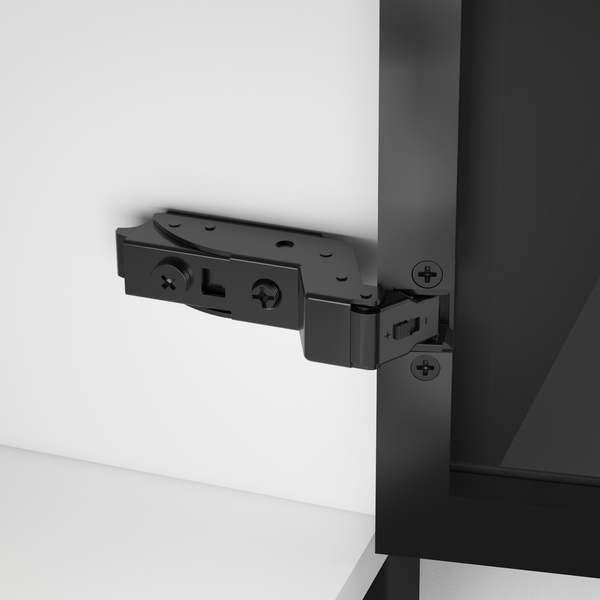

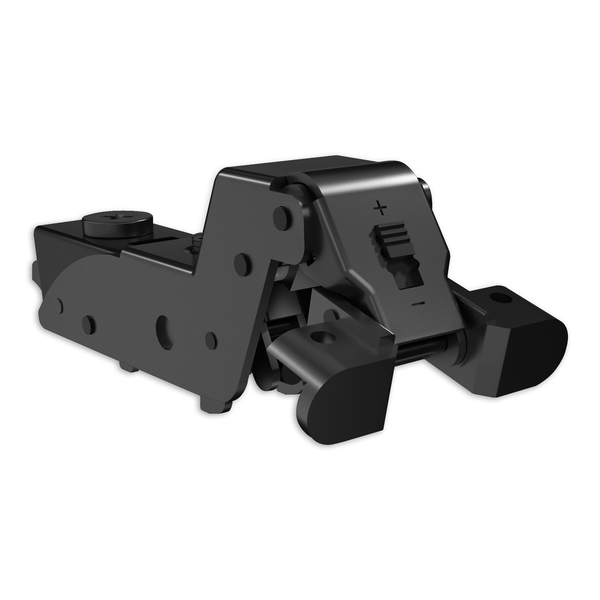

The TOUCH TCH-11400 T-XT I.28.A GM Inset T-XT Full-Cranked Push-Open Aluminum Frame Hinge is a concealed European-style cabinet hinge.
Elevate your modern cabinetry with the TOUCH T-X-T Hinge, the ultimate precision hardware engineered specifically for handleless, narrow-profile aluminum glass doors (19mm–22mm frame width). Combining minimalist design with better mechanical durability, it gives a clean, handle-free look for high-end residential and commercial interiors.
The full-cranked arm has the deepest bend of the three concealed hinge profiles, carrying the door inward so it closes flush inside the cabinet opening — the correct hinge for inset doors.
Inset T-XT Full-Cranked Push-Open Aluminum Frame Hinge Features & Specifications — TCH-11400 T-XT I.28.A GM
Push-to-Open & Soft Hydraulic Opening for Cabinet Hinges
Has a specialized built-in hydraulic cylinder that gives a smooth, controlled push-open motion, preventing sudden spring movements and protecting delicate glass panels.
105° Integrated Opening Angle Restrictor
A heavy-duty internal limit mechanism controls the standard 105° swing directly within the hinge link, eliminating the need for external clips while protecting adjacent walls and cabinets.
Precision Micro-Adjustment for Cabinet Hinges
Multi-dimensional alignment (lateral, vertical, and depth) engineered with zero-drift stability to give crisp, uniform gaps across handleless cabinet configurations.
Optimized Slim Frame Compatibility: 19mm to 22mm
Tailor-made with a 28mm hinge head drilling dimension to clean integrate with ultra-slim aluminum door profiles ranging from 19mm to 22mm.
Clean Mounting Plate Compatibility
Fully compatible with standard cabinet box mounting plates, letting fast, easy door installation or retrofitting without modifying existing cabinet hardware.
Anti-Corrosive GM (Gunmetal) Finish for Cabinet Hinges
Treated with a high-density GM (gunmetal) plating that gives maximum protection against humidity and daily wear while maintaining a refined metallic look.
Where to Use an Inset T-XT Full-Cranked Push-Open Aluminum Frame Hinge
The TCH-11400 T-XT I.28.A GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-XT I.28.A GM

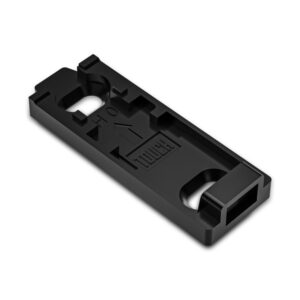

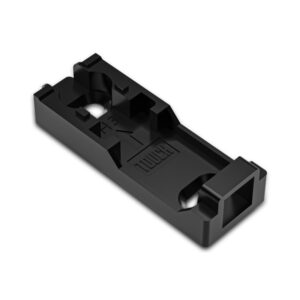

Pair the TCH-11400 T-XT I.28.A GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-XT I.28.A GM Inset T-XT Full-Cranked Push-Open Aluminum Frame Hinge
You get 105° integrated opening angle restrictor and seamless mounting plate compatibility in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
