•TCH-312012 DW.240

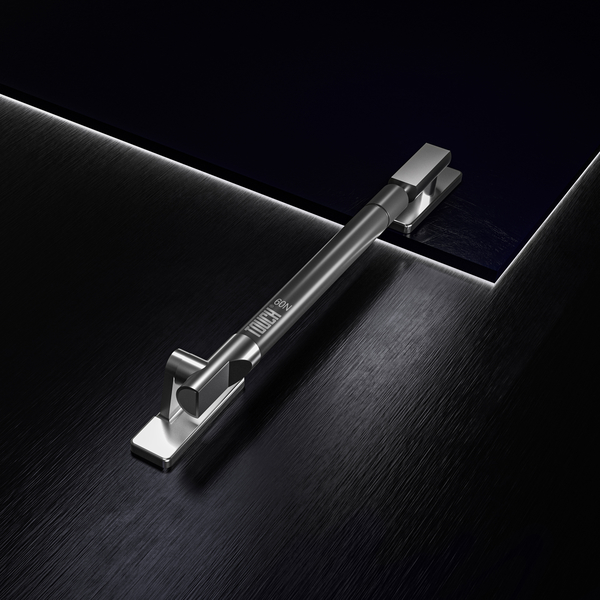

Slim Downward Oil Strut System
The absolute pinnacle of fluid motion technology for modern drop-down cabinetry. Engineered to provide a graceful, controlled descent for horizontal flap doors, this premium oil-based strut delivers a flawless, luxurious user experience.
✓ Fluid Downward Descent
✓ Hinge-Required System
✓ Ultra-Slim Profile
✓ 4 Premium Finishes
Engineered Features
A clear visual presentation of ultra-slim cabinet integration, advanced fluid deceleration, and robust downward support kinematics.
• Space & Aesthetics
Ultra-Slim Architectural Profile
In modern cabinetry design, particularly in media units and bar cabinets, internal hardware must be unobtrusive. This highly refined, low-profile cylinder occupies minimal interior space, ensuring that traditional bulky chains or friction stays do not interfere with stored items.
✓ Occupies minimal interior cabinet space.
✓ Replaces bulky chains and friction stays.
✓ Elegant minimalist geometry complements high-end furniture.
• Motion Control
Fluid Deceleration & Stable Support
Utilizing a specialized high-performance oil cylinder meticulously calibrated for downward motion, this system executes a smooth, fluid descent. Continuous deceleration ensures the heavy door does not free-fall, snap, or aggressively slam open.
✓ High-performance oil cylinder calibrated for downward motion.
✓ Continuous fluid deceleration prevents free-fall and slamming.
✓ Provides rock-solid stability at a fully open, 90-degree position.
• System Integration
Hinge-Required Architecture

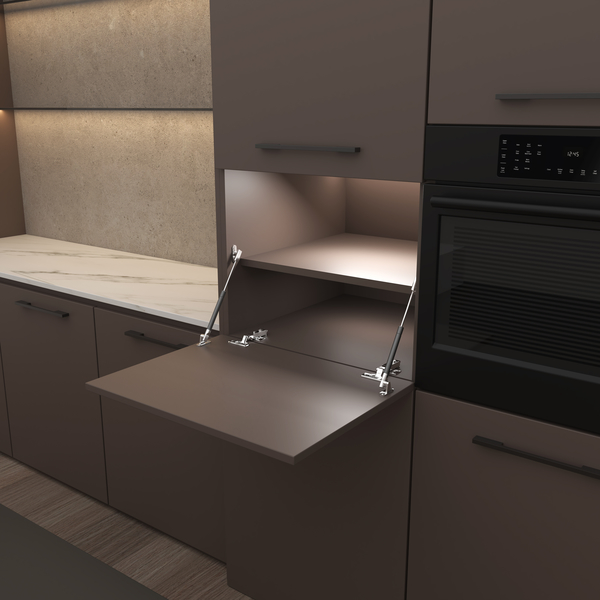

Engineered as a highly specialized supplementary support mechanism designed to work in perfect synchronization with standard bottom-mounted flap hinges. This intelligent division of stress reduces wear on the cabinet frame and protects door alignment.
✓ Pairs flawlessly with bottom-mounted flap hinges.
✓ Strut manages gravitational load and deceleration kinematics.
✓ Protects hinges from ripping and dramatically increases assembly lifecycle.
• Configuration
Versatile Loads & Premium Finishes
Built for maximum application versatility. The hydraulic damping capacity is scalable to match the exact weight and dimensions of the door front. Specialized, low-profile mounting brackets provide a highly secure, anti-slip bond for rapid installation.
✓ Scalable resistance matching for lightweight frames to heavy solid panels.
✓ Highly secure, anti-slip mounting brackets for rapid setup.
✓ Available in Silver, White, Dark Gray, and Golden finishes.
Technical Overview
Key application ranges and installation requirements at a glance.
Downward
Drop-Down Motion
Required
Bottom Flap Hinges
4 Colors
Premium Finishes
Scalable
Load Capacity
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Complete lifting system range and technical specifications.
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
