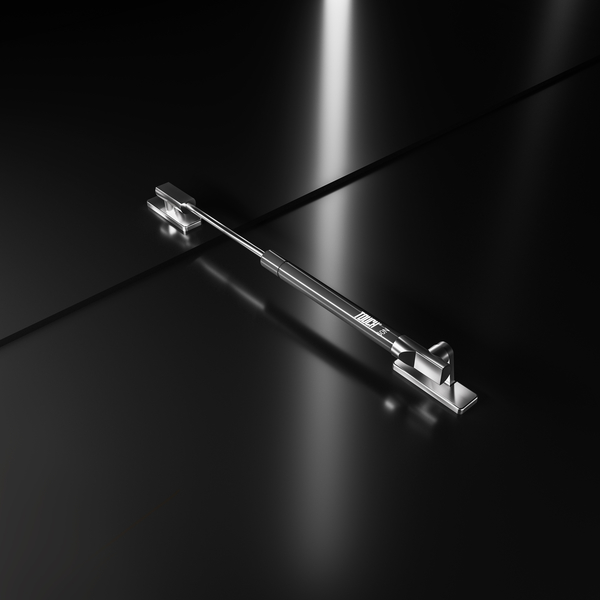

•TCH-312012 UW.240
Slim Upward Gas Strut Lift System
A slim upward gas strut for modern overhead cabinetry. Engineered to provide effortless, gravity-defying lift for horizontal cabinet fronts, this premium gas strut delivers a flawless, weightless user experience.
✓ Ultra-Slim Profile
✓ Hinge-Required System
✓ Stable Upward Lift
✓ 4 Premium Finishes
Engineered Features
A clear visual presentation of ultra-slim cabinet integration, robust pneumatic lift control, and seamless system kinematics.
• Space & Aesthetics

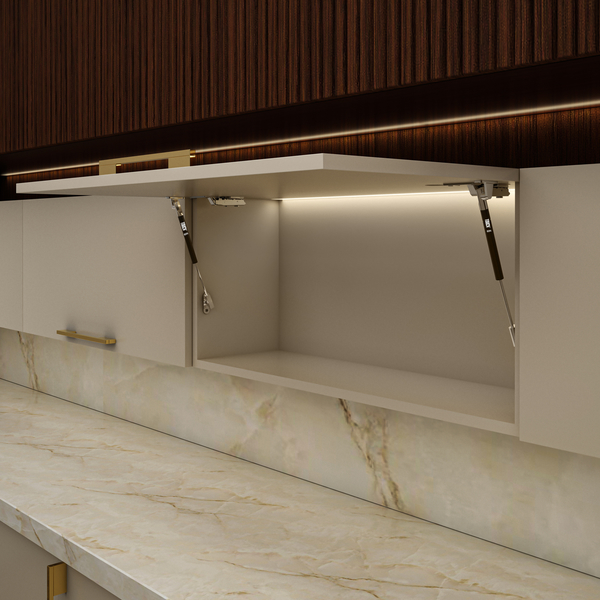

Ultra-Slim Architectural Profile
The slim upward gas strut is built to stay as unobtrusive as possible inside the cabinet. This strut features a highly refined, low-profile cylinder and piston rod configuration that occupies minimal interior space, ensuring traditional lift mechanisms do not interfere with stored goods.
✓ Occupies minimal interior cabinet space.
✓ Unobtrusive design won’t interfere with stored goods or supplies.
✓ Elegant minimalist geometry complements high-end contemporary furniture.
• Motion Control
Stable Upward Lift Support
At the core of this system is a high-performance pneumatic gas cylinder designed to deliver consistent, stable upward force. Once the door is pushed slightly ajar, the strut executes a smooth, controlled ascent to its fully open position.
✓ High-performance pneumatic gas cylinder for consistent force.
✓ Rock-solid stability when the door is held open.
✓ Prevents accidental drops or sagging to ensure optimal user safety.
• System Integration
Hinge-Required Architecture
Engineered as a supplementary lift and support mechanism designed to work in perfect synchronization with standard or soft-close cabinet hinges (such as the TOUCH TCH-11400 Series). This division of mechanical labor protects your cabinetry.
✓ Pairs perfectly with standard or soft-close concealed hinges.
✓ Strut manages vertical load and kinematic motion.
✓ Reduces stress on the cabinet frame, dramatically extending its lifespan.
• Configuration
Versatile Loads & Premium Finishes
Built for maximum application versatility. The pneumatic lifting capacity is scalable to match the exact weight and dimensions of the door front. Specialized mounting brackets provide a highly secure, anti-slip bond for rapid installation.
✓ Scalable pressure matching for lightweight frames to heavy solid panels.
✓ Highly secure, anti-slip mounting brackets for rapid setup.
✓ Available in Silver, White, Dark Gray, and Golden finishes.
Technical Overview
Key application ranges and installation requirements at a glance.
Upward
Lift Motion
Required
Standard Hinges
4 Colors
Premium Finishes
Scalable
Load Capacity
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Complete lifting system range and technical specifications.
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
