• TCH-311011 023.S
Premium Lift-Up Performance, Precisely Controlled
A refined soft-close lift-up cabinet door system with free-stop motion, built for modern wall cabinets. Engineered for effortless movement, accurate adjustment, flexible cabinet compatibility, and a clean hinge-free installation.
✓ Free-Stop Motion
✓ 3D Adjustment
✓ Soft-Close Damping
✓ No Hinges Needed
Engineered Features
A clear visual presentation of installation, adjustment, cabinet compatibility, motion control, and opening performance.
• Installation
Quick and Secure Installation
The clip-on connection system makes mounting and removal fast, secure, and practical. It simplifies initial installation and allows convenient servicing without compromising stability.
✓ Fast clip-on mounting and removal.
✓ Secure connection for dependable daily operation.
✓ Easy access during adjustment or maintenance.
• Adjustment

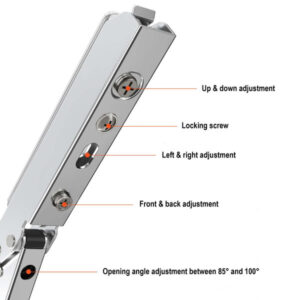

Precise Multi-Directional Alignment
Integrated adjustment points provide accurate control over door alignment and movement, helping installers achieve a clean, professional finish with less effort.
✓ Up and down adjustment for vertical alignment.
✓ Left and right adjustment for consistent side gaps.
✓ Front and back adjustment for depth positioning.
✓ Dedicated locking and opening-angle controls.
• Motion Control
Smooth Soft-Close and Free-Stop Motion
The integrated motion system combines controlled closing with hands-free positioning, creating a safe and comfortable user experience throughout the opening cycle.
✓ Closing damping engages at approximately 35°.
✓ The front remains held at any position between 35° and 85°.
✓ Quiet, stable movement for everyday use.
• Opening Range

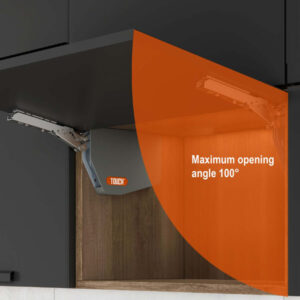

Adjustable Opening Angle up to 100°
The opening angle can be tailored to the cabinet and surrounding space, providing clear access while preventing unnecessary overextension.
✓ Adjustable opening angle between 85° and 100°.
✓ Maximum opening angle of 100° .
✓ Suitable for different cabinet layouts and ceiling clearances.
• Clean Integration
No Traditional Hinges Required
The soft-close lift-up cabinet door system supports and controls the front independently, removing the need for separate traditional hinges and creating a cleaner installation.
✓ Simplified cabinet construction and installation.
✓ Clean internal appearance with fewer components.
✓ Balanced left- and right-side mechanism set.
Technical Overview
Key application ranges and installation requirements at a glance.
350–1800 mm
Cabinet Width
300–800 mm
Cabinet Height
1.3–20.0 kg
Front Weight Range
260 mm
Minimum Internal Depth
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Complete lifting system range and technical specifications.
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
