Description

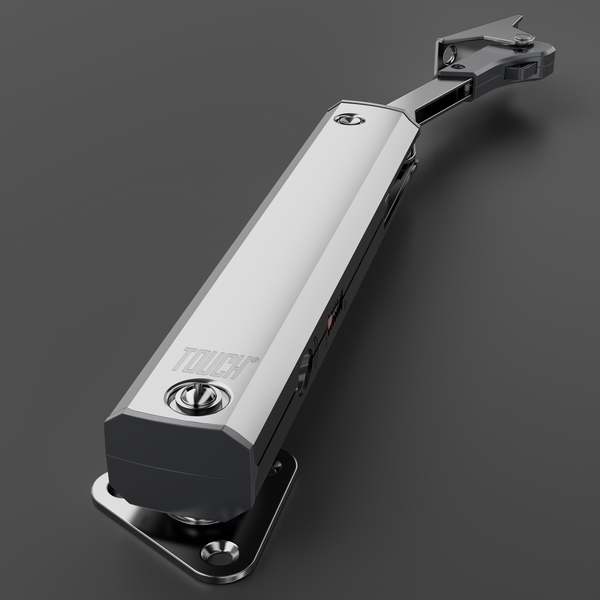

The TOUCH TCH-313000 337.T Push-Open Free-Stop Slim Upward Door Lift System is a lift-up door mechanism for wall and tall cabinets. Lift systems are matched to door weight and cabinet height, so check both against the ranges given below, together with the features and compatible TOUCH hardware.
Push-Open Free-Stop Slim Upward Door Lift System Features & Specifications — TCH-313000 337.T
Push-to-Open Functionality for Lift-Up Door Systems
Simply press the front panel to activate opening—no handles required, perfect for clean cabinet design.
Free-Stop at Any Angle: 40° to 100°
Door remains securely fixed at any angle between 40°–100°, giving hands-free, adjustable access.
Slim Compact Profile for Lift-Up Door Systems
Space-saving design makes it ideal for shallow cabinet bodies and tight installation spaces.
Force Adjustable for Lift-Up Door Systems

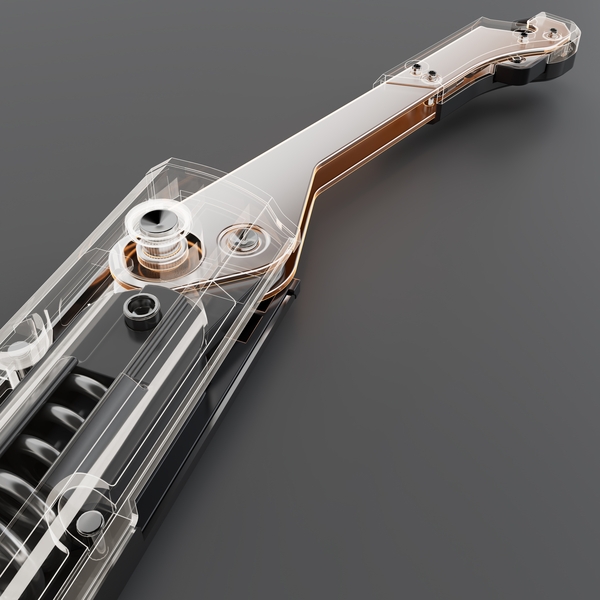

Built-in adjustment screw lets tuning of the opening force to suit various door weights and dimensions.
85° Recommended Use with T‑XT Hinges
Designed to pair with the T‑XT hinge series, which includes push-open function and integrated opening angle restrictors (85°, 95°, 105°) for smooth and controlled operation.
Hinge-Required System
Works in conjunction with standard push-open concealed hinges (sold separately).
Technical Specifications
- Free-Stop Range: 40°–100°
- Minimum Cabinet Depth: (6″) 150 mm
- Cabinet Height (KH): (10¼”) 260 mm to (24″) 600 mm
- Cabinet Width: (12″) 300 mm to (71″) 1800 mm
- Front Weight Range: 1.5–13.7 kg (3.3–30.2 lb)
Additional Details
- Color Options: Nickel and Black

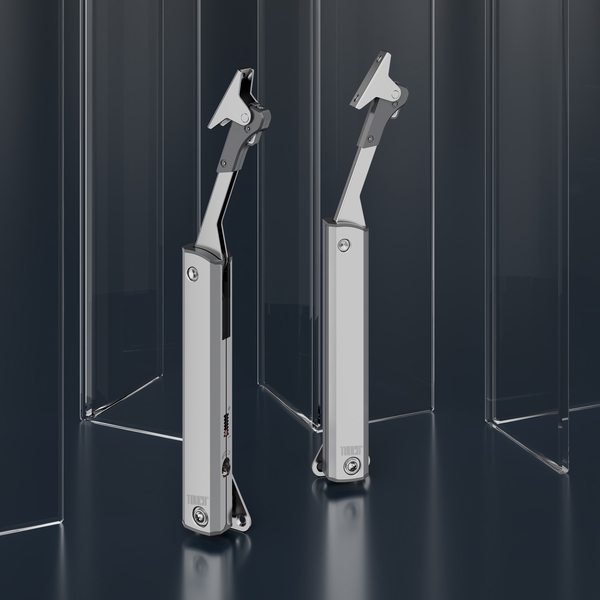

- Sold as Each: One mechanism per unit (order separately for left and right sides)
- Application Areas: Perfect for handleless wall cabinets, upper storage units, and minimalist cabinetry layouts
Where to Use a Push-Open Free-Stop Slim Upward Door Lift System
The TCH-313000 337.T is suitable for residential and commercial cabinetry, including:

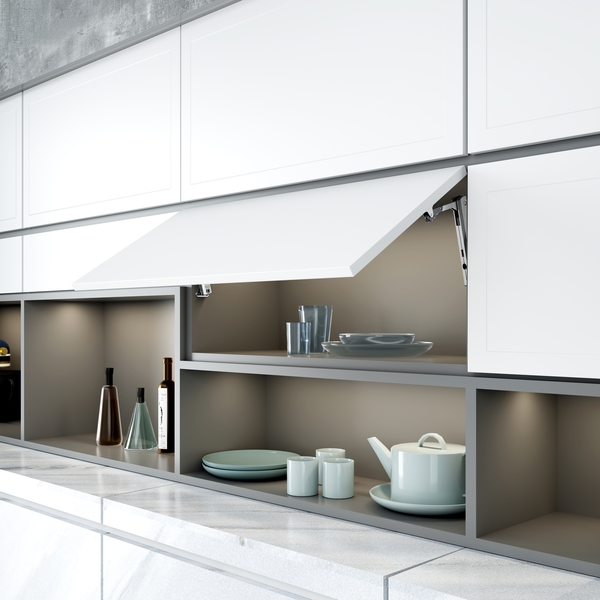

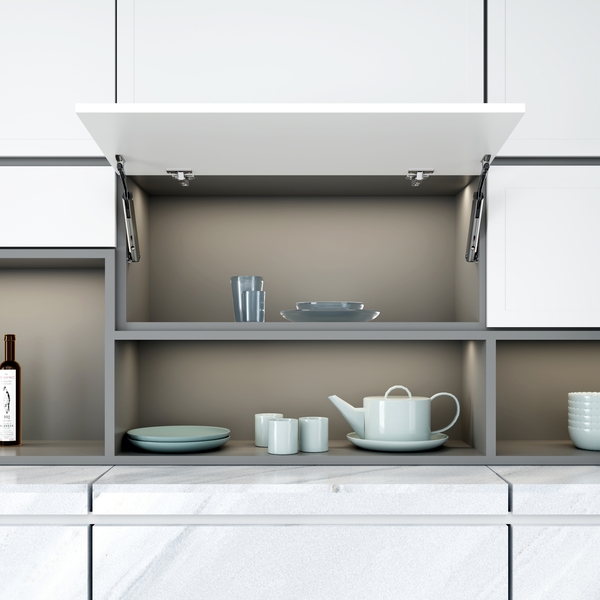

- Kitchen wall units with lift-up or flap doors
- Overhead storage in laundries and utility rooms
- Media consoles and bar cabinets
- Office and reception storage
Compatible Products — TCH-313000 337.T
Use the TCH-313000 337.T with the matching TOUCH cover cap for this system, and check your door weight and cabinet height against the ranges given above before ordering.
Why Choose the TOUCH TCH-313000 337.T Push-Open Free-Stop Slim Upward Door Lift System
The TCH‑313000 337.T combines modern push-open convenience with smooth, stable free-stop motion—delivering a refined lift-up solution for slim, handleless cabinet designs. With adjustable force control and flexible mounting options, this system is a top choice for architects, designers, and manufacturers seeking clean performance in a compact format. When paired with T‑XT push-open hinges, it creates a clean, touch-activated experience that improves both form and function.
