Description

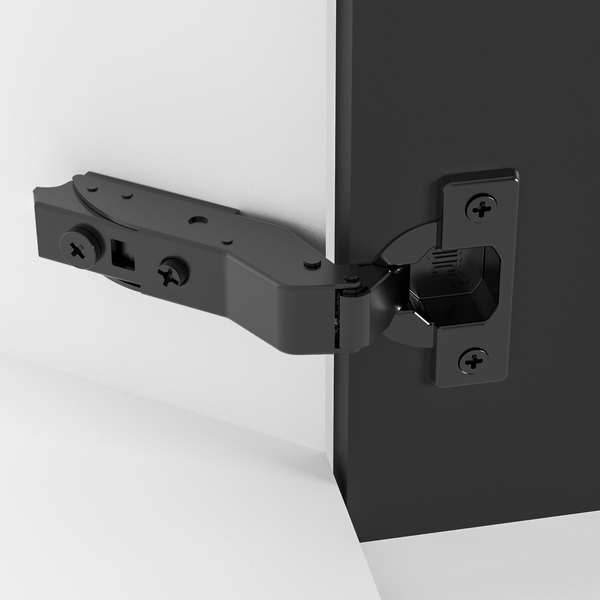

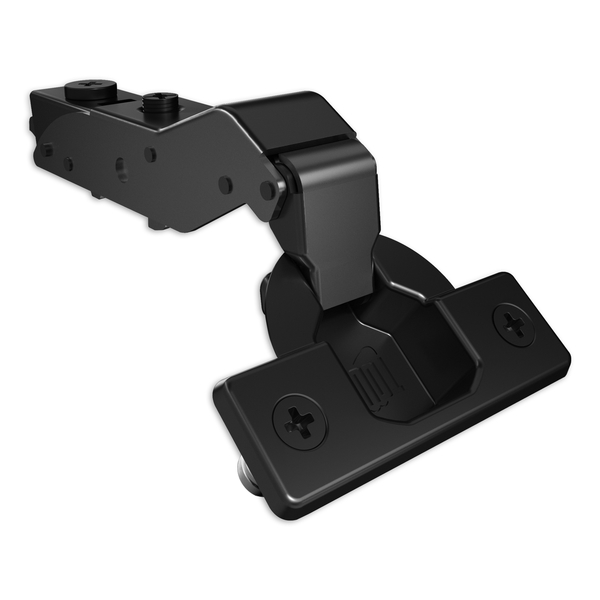

The TOUCH TCH-11400 030.45.D GM Soft-Close +30 Degree Angled Application Hinge is a concealed European-style cabinet hinge. Match the arm profile to the way your door sits on the cabinet, then pair it with the mounting plate height that gives the overlay or inset reveal you want. The features, specifications and compatible TOUCH hardware are set out below.
Soft-Close +30 Degree Angled Application Hinge Features & Specifications — TCH-11400 030.45.D GM
Smart Gap Alignment & Controlled Multi-Dimensional Adjustment for Cabinet Hinges
Achieving a visually flawless, uniform reveal is exceptionally difficult in angled cabinetry installations where geometric alignments complicate standard spacing. This hinge solves that issue with its integrated, controlled adjustment system made with advanced even gaps that stay put. As installers fine-tune the door’s lateral, vertical, or depth positioning, the hinge mechanism securely locks its settings, preventing sagging, shifting, or alignment drift over time. The rigidity of the thick steel body makes sure that these settings remain locked under continuous daily usage.
Advanced Soft-Close Hydraulic Damping Technology for Cabinet Hinges
Fitted with an ultra-responsive, built-in hydraulic damper, this angled hinge brings quiet luxury to corner cabinet access. The soft-close mechanism is fully enclosed within the hardware frame, absorbing closing force smoothly as the door closes. Regardless of the closing force applied, the integrated damper gives a slow, controlled, and completely silent slowing. This slam-free experience not only elevates the cabinet’s high-quality feel but also significantly reduces physical stress and vibration on the door panels and carcass frame.
Specialized +30 ° Angled Geometry & Versatile Boring Distance
Standard rectangular hinges cannot accommodate the specific clearance and structural vector required for doors meeting cabinet frames at a sharp angle. The TCH-11400 Angled Application hinge has a custom-made arm geometry shaped for a fixed $+30^circ$ carcass angle, for smooth door travel through its entire 105° opening swing without binding. Also, it offers a flexible boring distance range from 3mm to 5mm, giving fabricators the precision required to calibrate edge distances for an immaculate fit.
35mm High-Capacity Standard Cup Profile
Unlike slim aluminum profile variations, this model uses a full-sized 35mm hinge cup diameter with a standard 11.5mm drilling depth. This strong configuration gives an excellent anchoring foundation within standard wood, MDF, or composite cabinet doors up to 21mm thick. It gives high load-bearing capacity and a stable rotational axis, allowing designers to specify heavier or taller solid doors for corner installations with absolute confidence.
30° Clean Mounting Plate Integration
Streamlining field labor and minimizing component overhead is core to the TOUCH hardware ecosystem. This +30 ° angled hinge is engineered to be fully compatible with existing standard mounting plates. This smart compatibility means millworkers, installers, and maintenance crews can execute quick replacements, easy upgrades, or swap existing standard hinges out for angled variants without needing to modify or replace the pre-installed cabinet-box mounting hardware.
Durable Construction with GM (Gunmetal) Finish
Engineered for demanding architectural and heavy-use environments, this variant of the angled application hinge is built from thick-gauge steel with a GM (gunmetal) plated finish. This structural material choice gives excellent load-bearing strength, high tensile resistance, and excellent dimensional stability under temperature fluctuations. The thick steel body makes sure that the heavy angled hinge body resists warping, twisting, or metal fatigue, guaranteeing reliable long-term performance and a strong metallic feel with every cycle.
Where to Use a Soft-Close +30 Degree Angled Application Hinge
The TCH-11400 030.45.D GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 030.45.D GM
Pair the TCH-11400 030.45.D GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 030.45.D GM Soft-Close +30 Degree Angled Application Hinge
The TOUCH +30° Angled Application Hinge offers a smarter, highly specialized engineering solution for custom millwork and angled wood cabinetry requiring standard 35mm cup configurations. By packing advanced technical features—such as integrated hydraulic soft-close slowing, micro-stabilized gap adjustments, variable boring ranges, and a specialized angled pivot geometry—into a compact footprint, it elegantly resolves the structural and tight fits presented by modern multi-angled furniture assemblies.
