Description

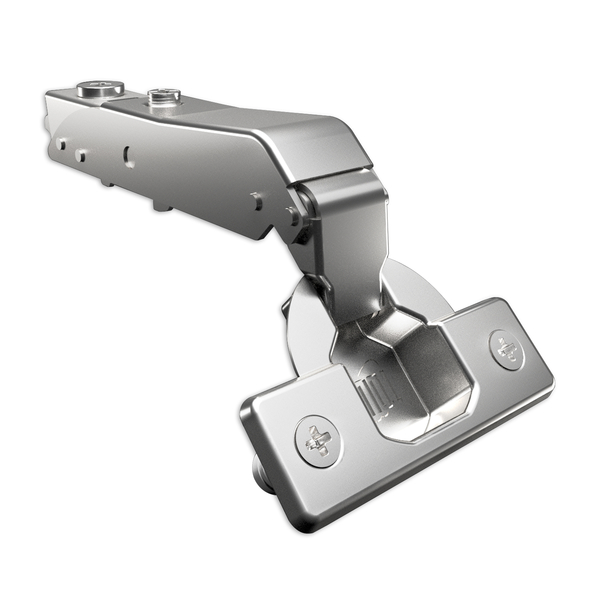

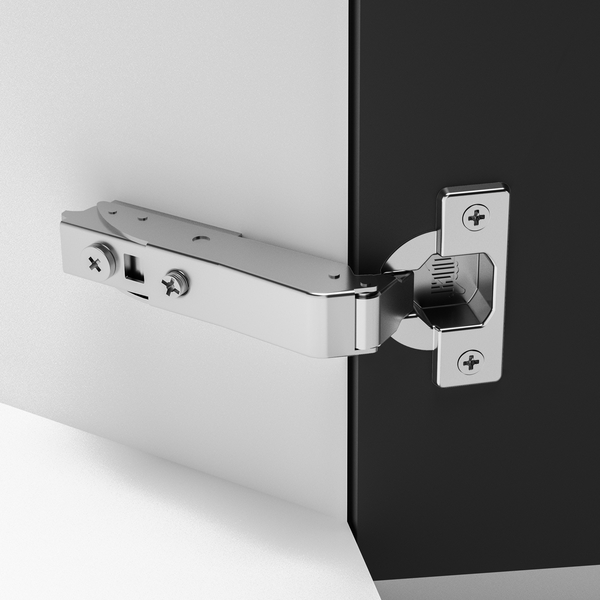

The TOUCH TCH-11400 045.I.45.D Soft-Close +45 Degree Overlay Angled Application Hinge is a concealed European-style cabinet hinge.
It gives precision engineering for custom corner cabinets, angled display cases, and geometric furniture designs. Shaped specifically for cabinet structures built at a +45° angle relative to the door face, this premium hinge combines smooth mechanical performance with fine alignment. Manufactured with high-density structural materials and a corrosion-resistant nickel-plated finish, it gives long-term durability and silent operation for high-end residential and commercial cabinetry.
Soft-Close +45 Degree Overlay Angled Application Hinge Features & Specifications — TCH-11400 045.I.45.D
105° Opening Angle
105° smooth opening swing without binding.
Specialized +45° Geometry
Purpose-built arm geometry shaped for fixed +45° carcass configurations.
Hydraulic Soft-Close for Cabinet Hinges
Integrated damper fully enclosed within the frame for silent, slam-free door slowing.
Controlled Multi-Dimensional Adjustment for Cabinet Hinges
Micro-adjustment system with advanced even gaps that stay put to prevent door sagging or shifting over time.
Standard 35mm Hinge Cup
Full-sized 35mm cup diameter with an 11.5mm drilling depth, giving stable load-bearing capacity for doors up to 21mm thick.
Flexible Boring Distance: 3mm to 7mm
Adjustable range from 3mm to 7mm for precise door edge calibration.
Cross-Compatible Mounting for Cabinet Hinges
Fully compatible with standard existing mounting plates for fast installation and field upgrades.
Durable Nickel-Plated Finish
Premium corrosion-resistant coating that resists surface oxidation, twisting, and mechanical wear.
Where to Use a Soft-Close +45 Degree Overlay Angled Application Hinge
The TCH-11400 045.I.45.D is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 045.I.45.D
Pair the TCH-11400 045.I.45.D with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 045.I.45.D Soft-Close +45 Degree Overlay Angled Application Hinge
You get 105° opening angle, specialized +45° geometry and hydraulic soft-close for cabinet hinges in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
