Description

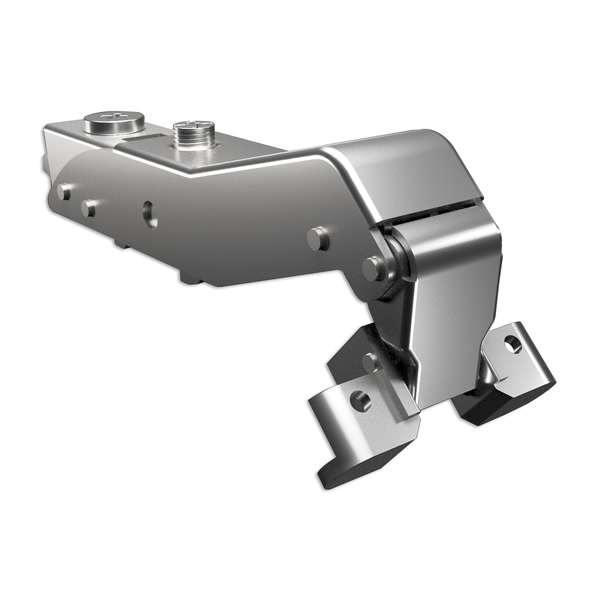

The TOUCH TCH-11400 045.II.28.A Soft-Close +45 Degree Half Overlay Angled Application Aluminum Frame Hinge is a concealed European-style cabinet hinge, made for half-overlay doors on a shared partition.
Ideal For: Angled display cases, corner kitchen units, custom geometric cabinetry, luxury retail showcases, and high-end architectural millwork.
Soft-Close +45 Degree Half Overlay Angled Application Aluminum Frame Hinge Features & Specifications — TCH-11400 045.II.28.A
Specialized +45° Angled Half Overlay Geometry
Custom-engineered arm geometry designed for fixed +45° carcass angles, letting smooth, unhindered 105° opening travel without binding, catching, or colliding on mitered intersections.
Soft-Close Hydraulic Damping Technology for Cabinet Hinges
Integrated hydraulic damper takes the force out of the closing door to give a smooth, silent, and slam-free closing motion—protecting delicate glass panels and slim aluminum frames from stress and vibration.
Anti-Corrosive Nickel Finish for Cabinet Hinges
Treated with high-density nickel plating to deliver maximum protection against environmental humidity and daily wear while maintaining a clean, modern metallic aesthetic.
Precision Micro-Adjustment for Cabinet Hinges
Advanced multi-dimensional alignment (lateral, vertical, and depth) with settings that hold, for crisp, uniform reveals across complex angled configurations.
Optimized Narrow Frame Compatibility: 19mm to 22mm

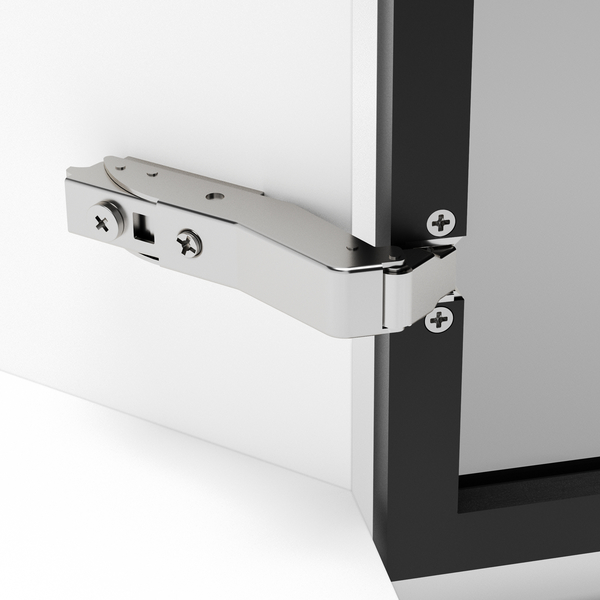

Engineered with a specialized 28mm hinge head drilling dimension to integrate flawlessly into ultra-slim metallic profiles ranging from 19mm to 22mm in width.
Clean Mounting Plate Integration
Fully compatible with standard cabinet box mounting plates for fast, easy retrofits and upgrades without re-drilling or replacing pre-installed hardware.
Where to Use a Soft-Close +45 Degree Half Overlay Angled Application Aluminum Frame Hinge
The TCH-11400 045.II.28.An is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 045.II.28.A
Pair the TCH-11400 045.II.28.A with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 045.II.28.A Soft-Close +45 Degree Half Overlay Angled Application Aluminum Frame Hinge
You get clean mounting plate integration in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
