Description

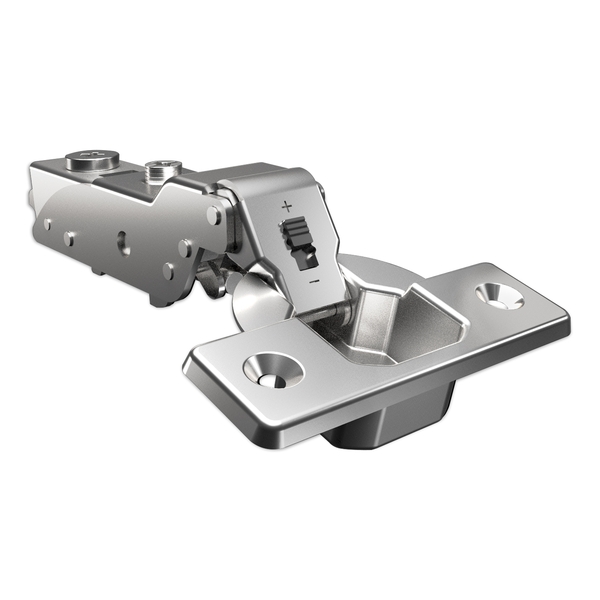

The TOUCH TCH-11400 T-XT H.45.S Half Overlay T-XT Half-Cranked Push-Open Hinge is a concealed European-style cabinet hinge.
Applications
It is ideal for a variety of handleless cabinetry applications, including:
The half-cranked arm sets the door back so two doors can share one cabinet partition; for a door covering a full side choose the straight-arm version, and for flush inset doors the full-cranked version.
Half Overlay T-XT Half-Cranked Push-Open Hinge Features & Specifications — TCH-11400 T-XT H.45.S
105° Opening Angle
105° smooth opening swing with an opening angle restrictor integrated directly into the hinge link.
Push-Open Rebound System for Cabinet Hinges
Built-in mechanical push-open buffer system for easy handleless cabinet opening.
Half-Cranked (Half Overlay) Design
Specialized arm geometry shaped for twin-door applications where two doors share a central partition wall.
Controlled Gap Adjustment for Cabinet Hinges
Advanced fine adjustment system giving even gaps that stay put to prevent panel binding, sagging, or misalignment over time.
35mm Standard Technical Profile
Full-sized 35mm hinge cup diameter with an 11.5mm drilling depth, giving stable load capacity for doors up to 21mm thick.
Flexible Boring Distance: 3mm to 7mm
Adjustable range from 3mm to 7mm (K) to accommodate various mounting plate heights (H) and door overlays (D).
Cross-Compatible Mounting for Cabinet Hinges
Fully compatible with existing standard mounting plates for streamlined installation and retrofitting.
Durable Nickel-Plated Finish
Premium nickel plating engineered to resist wear, surface oxidation, and metal fatigue.
Modern handleless European kitchen cabinets with central partitions
Clean push-to-open twin-door office storage units and wardrobes
Architectural millwork requiring clean, uninterrupted exterior surfaces
Specialized commercial and residential cabinetry with shared-wall panel designs
Where to Use a Half Overlay T-XT Half-Cranked Push-Open Hinge
The TCH-11400 T-XT H.45.S is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-XT H.45.S
Pair the TCH-11400 T-XT H.45.S with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-XT H.45.S Half Overlay T-XT Half-Cranked Push-Open Hinge
You get 105° opening angle, half-cranked (half overlay) design and 35mm standard technical profile in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
