Description

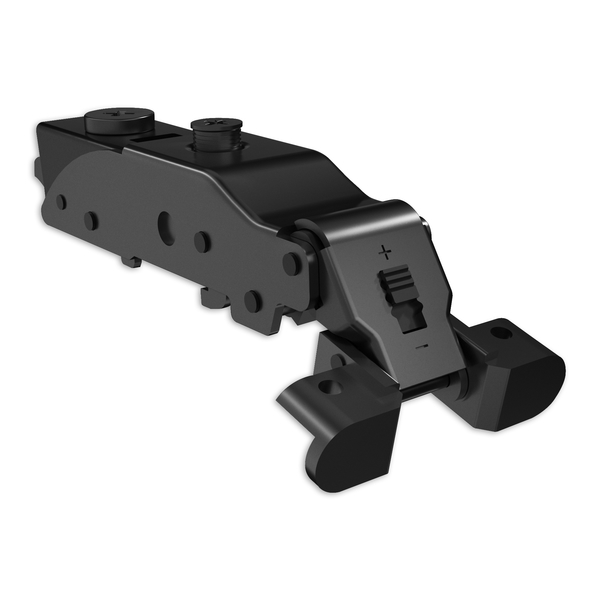

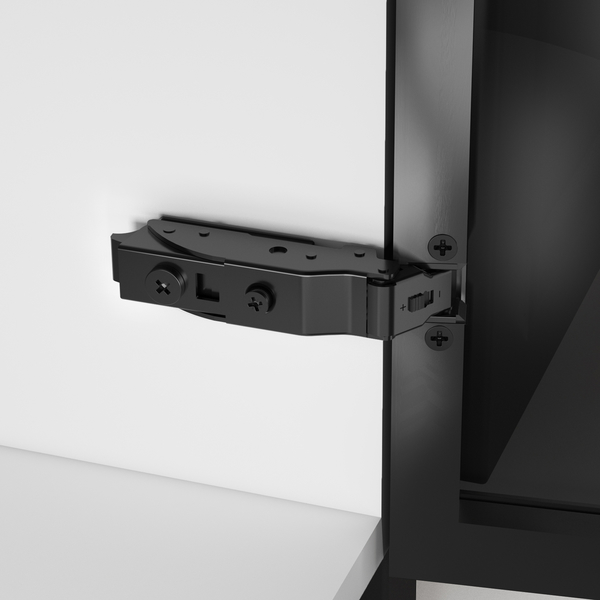

The TOUCH TCH-11400 T-X F.28.A GM Full Overlay T-X Straight-Arm Soft-Close Aluminum Frame Hinge is a concealed European-style cabinet hinge, made for full-overlay doors.
The straight (uncranked) arm suits full-overlay doors that cover the cabinet side completely; for two doors sharing a partition choose the half-cranked version, and for flush inset doors the full-cranked version.
Full Overlay T-X Straight-Arm Soft-Close Aluminum Frame Hinge Features & Specifications — TCH-11400 T-X F.28.A GM
28mm Optimized Narrow Frame Compatibility
Specialized 28mm hinge head drilling profile fits slim aluminum frame doors strictly between 19mm and 22mm wide without compromising structural integrity.
Advanced Soft-Close Hydraulic Damping for Cabinet Hinges
Fully enclosed hydraulic damper slows the door for a quiet close with no slamming—protecting delicate glass inserts and slim frames from vibrational impact.
105° Integrated Opening Angle Restrictor
Built-in linkage restriction controls the standard 105° swing directly within the hinge link, stopping the door from swinging too far and protecting adjacent walls, glass panels, or cabinetry without external clips.
Durable Construction with GM (Gunmetal) Finish
Built from thick-gauge steel, GM (gunmetal) plated, for strength, preventing door sagging and resisting warping or metal fatigue under continuous daily use.
Controlled Micro-Adjustment for Cabinet Hinges
Multi-dimensional alignment controls (lateral, vertical, and depth) with settings that hold give crisp, perfectly uniform reveals across modern minimalist cabinetry.
Clean Mounting Plate Compatibility
Fully compatible with standard cabinet box mounting plates for fast, simple retrofits and production installations without modifying existing box hardware.
Where to Use a Full Overlay T-X Straight-Arm Soft-Close Aluminum Frame Hinge
The TCH-11400 T-X F.28.A GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X F.28.A GM
Pair the TCH-11400 T-X F.28.A GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X F.28.A GM Full Overlay T-X Straight-Arm Soft-Close Aluminum Frame Hinge
You get 28mm optimized narrow frame compatibility, 105° integrated opening angle restrictor and high-durability gm plate construction in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
