Description

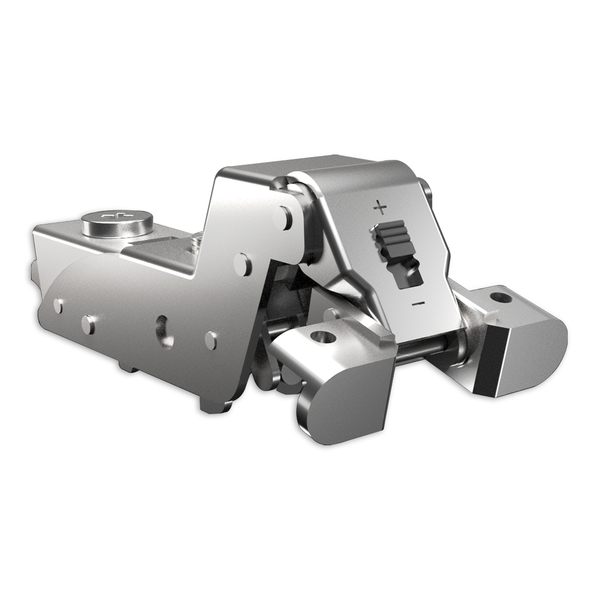

The TOUCH TCH-11400 T-X I.28.An Inset T-X Full-Cranked Soft-Close Aluminum Frame Hinge is a concealed European-style cabinet hinge, made for inset doors that sit flush in the frame.
Deliver smooth, quiet performance to modern cabinetry with the TOUCH T-X Soft-Close Hinge. Purpose-built for narrow-profile aluminum glass doors (19mm–22mm frame width), this premium hardware combines a compact 28mm hinge head cup with integrated hydraulic damping. Finished in high-density nickel plating, it gives lasting structural integrity, anti-corrosive durability, and a clean minimalist aesthetic for luxury interiors.

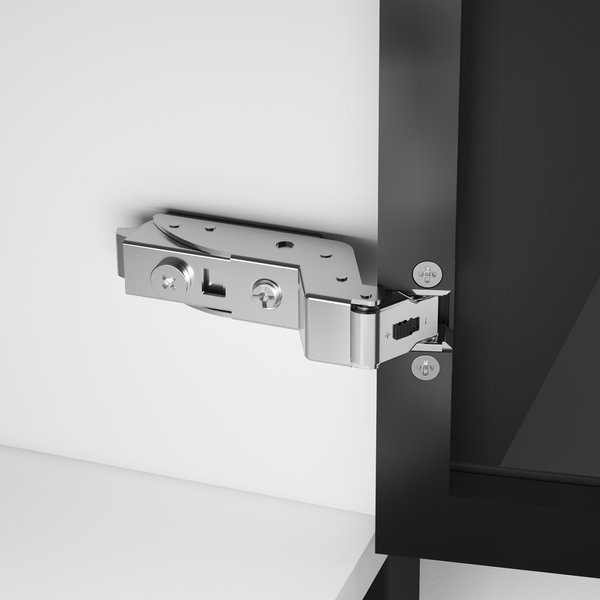

The full-cranked arm has the deepest bend of the three concealed hinge profiles, carrying the door inward so it closes flush inside the cabinet opening — the correct hinge for inset doors.
Inset T-X Full-Cranked Soft-Close Aluminum Frame Hinge Features & Specifications — TCH-11400 T-X I.28.A
Advanced Soft-Close Hydraulic Damping for Cabinet Hinges
Fully enclosed hydraulic damper takes the force out of the closing door to deliver a slow, silent, and slam-free closing motion—protecting narrow frames and glass inserts from vibration.
105° Integrated Opening Angle Restrictor
Built-in link mechanism controls the standard 105° swing directly within the hinge link, preventing door the door swinging too far and protecting adjacent walls or glass structures without extra clips.
Anti-Corrosive Nickel Finish for Cabinet Hinges
Industrial-grade nickel-plated coating gives high resistance to humidity, surface moisture, and daily wear while matching modern anodized aluminum profiles.
Precision Micro-Adjustment for Cabinet Hinges
Advanced multi-dimensional alignment (lateral, vertical, and depth) with settings that hold keeps door reveals crisp and aligned over long-term use.
Optimized Narrow Frame Compatibility: 19mm to 22mm
Engineered with a specialized 28mm cup drilling dimension shaped specifically for ultra-slim metallic profiles ranging from 19mm to 22mm in width.
Clean Mounting Plate Compatibility
Fully compatible with standard cabinet box mounting plates for fast, simple retrofits and installations without modifying existing box hardware.
Where to Use an Inset T-X Full-Cranked Soft-Close Aluminum Frame Hinge
The TCH-11400 T-X I.28.An is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X I.28.A
Pair the TCH-11400 T-X I.28.A with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X I.28.An Inset T-X Full-Cranked Soft-Close Aluminum Frame Hinge
You get 105° integrated opening angle restrictor and seamless mounting plate compatibility in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
