Description

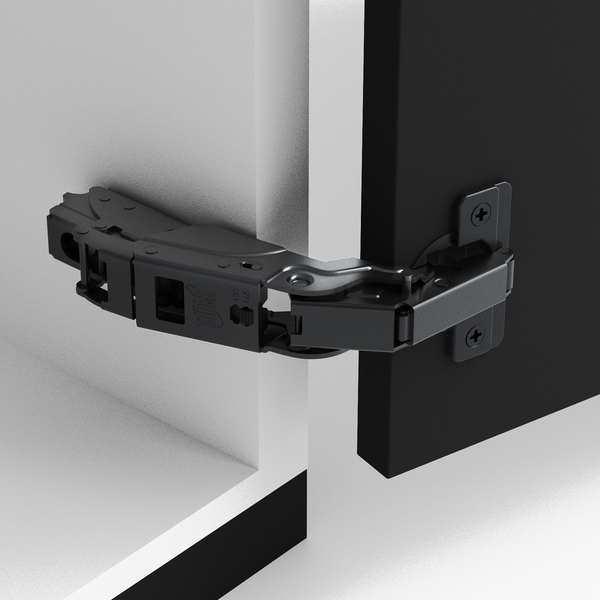

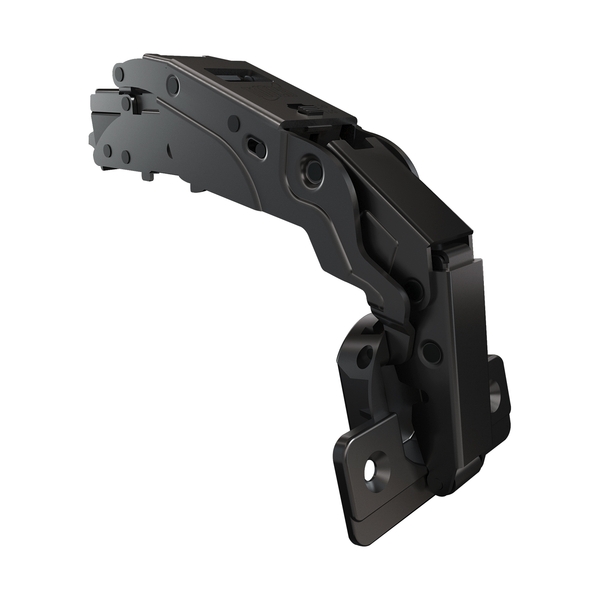

The TOUCH TCH-11400 T-X 165.H.45.S GM Half Overlay T-X Half-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge is a concealed European-style cabinet hinge, made for lazy susan corner cabinets.
The TOUCH® T-X Half-Cranked 165° Soft-Close Lazy Susan Corner Hinge gives wide-angle access and smooth mechanical performance for modern kitchen cabinetry and custom furniture builds. Designed specifically for half overlay doors where the panel partially covers the cabinet frame, this hinge eliminates clearance obstacles for internal storage systems like pantry drawers and corner lazy Susans. Built from thick-gauge steel with a GM (gunmetal) plated finish, it gives better structural durability, controlled multi-dimensional even gaps that stay put, and a silent, slam-free feel in use.
The half-cranked arm sets the door back so two doors can share one cabinet partition; for a door covering a full side choose the straight-arm version, and for flush inset doors the full-cranked version.
Half Overlay T-X Half-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge Features & Specifications — TCH-11400 T-X 165.H.45.S GM
165° Wide Opening Angle
Expansive opening range for unobstructed cabinet access, with an integrated link restrictor to limit the opening angle to 130° when required.
Half Overlay Design
Purpose-built for half overlay cabinet doors, allowing the door to partially cover the frame for a modern, space-efficient layout.
Hydraulic Soft-Close for Cabinet Hinges
Built-in hydraulic damper enclosed within the frame for smooth, silent slowing and protection against slamming.
Precision Gap Adjustment for Cabinet Hinges
Micro-adjustment mechanism with advanced even gaps that stay put to prevent door sagging and maintain precise alignment over time.
35mm Standard Technical Profile
35mm hinge cup diameter with an 11.5mm drilling depth, optimizing load capacity for door thicknesses up to 21mm.
Flexible Boring Distance: 3mm to 7mm
Adjustable range from 3mm to 7mm for exact edge calibration.
Cross-Compatible Mounting for Cabinet Hinges
Fully compatible with existing standard mounting plates for quick assembly and replacement.
Heavy-Duty GM Construction for Cabinet Hinges
Thick-gauge steel with a GM (gunmetal) plated finish engineered to resist twisting, metal fatigue, surface oxidation, and temperature fluctuations.
Where to Use a Half Overlay T-X Half-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge
The TCH-11400 T-X 165.H.45.S GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X 165.H.45.S GM
Pair the TCH-11400 T-X 165.H.45.S GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X 165.H.45.S GM Half Overlay T-X Half-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge
You get 165° wide opening angle, half overlay design and hydraulic soft-close for cabinet hinges in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
