Description

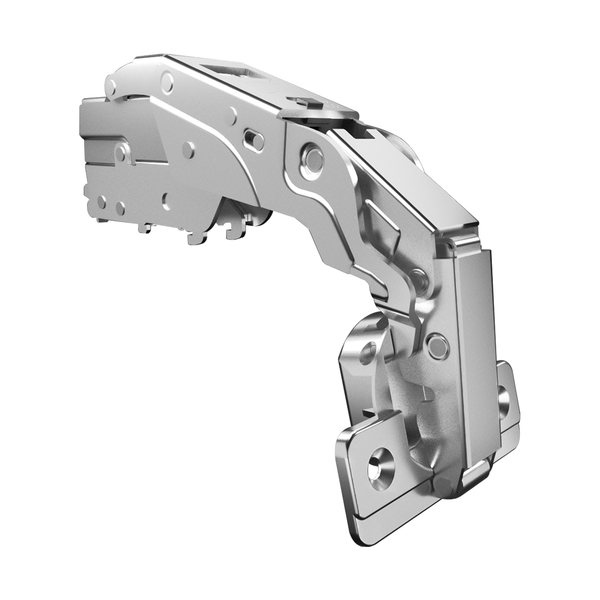

The TOUCH TCH-11400 T-X 165.I.45.S Inset T-X Full-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge is a concealed European-style cabinet hinge, made for lazy susan corner cabinets.
Applications:
The TOUCH T-X Full-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge is ideal for a variety of high-function cabinetry, including:
The full-cranked arm has the deepest bend of the three concealed hinge profiles, carrying the door inward so it closes flush inside the cabinet opening — the correct hinge for inset doors.
Inset T-X Full-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge Features & Specifications — TCH-11400 T-X 165.I.45.S
Inset Design
Shaped for inset cabinet doors, allowing the door to sit flush within the cabinet frame for a clean, integrated appearance.
165-Degree Wide Opening Angle
Gives an expansive opening range for unobstructed access to cabinet contents. For specialized installations, it includes an integrated restrictor to limit the opening angle to 130° when necessary.
Integrated Soft-Close Technology for Cabinet Hinges
Has a built-in hydraulic damper that prevents slamming. This mechanism gives the door closes gently and quietly, protecting the cabinet structure and reducing noise in the home.
Precision Adjustment & Stability for Cabinet Hinges
Designed with controlled adjustment capabilities that maintain even gaps that stay put, for the cabinet doors remain perfectly aligned and aesthetically consistent over time.
Standard Technical Specifications: 3mm to 7mm
Built to industry standards with a 35mm hinge cup diameter and an 11.5mm cup depth. It fits a boring distance range of 3mm to 7mm, offering flexibility during the installation process.
21mm High Compatibility
Fully compatible with existing mounting plates and designed for door thicknesses up to 21mm, making it a versatile choice for both new projects and hardware upgrades.
Wide-angle kitchen cabinets
Lazy Susan corner units
Pantry doors requiring full clearance
High-end residential and commercial storage
Where to Use an Inset T-X Full-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge
The TCH-11400 T-X 165.I.45.S is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X 165.I.45.S
Pair the TCH-11400 T-X 165.I.45.S with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X 165.I.45.S Inset T-X Full-Cranked 165 Degree Soft-Close Lazy Susan Corner Hinge
You get inset design, 165-degree wide opening angle and 21mm high compatibility in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
