Description
T-X Full Overlay Hinge
Redefining Precision in Cabinet Hardware
The T-X Full Overlay Hinge is engineered to deliver exceptional precision, reliability, and durability for modern cabinetry. By combining advanced functionality with rigorous quality standards, the T-X hinge sets a new benchmark in performance and design.
Key Features

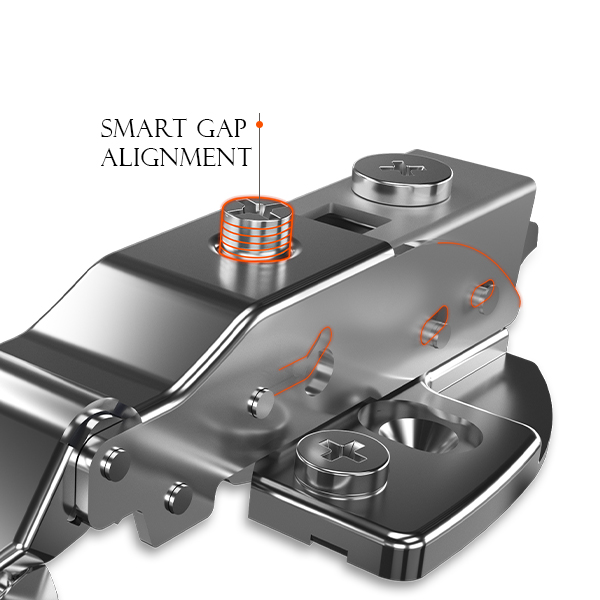

- Smart Gap Alignment
An advanced gap stability system ensures consistent, uniform spacing between cabinet doors and frames—even during adjustments—providing a seamless, professional finish. - Built-In Opening Angle Restrictor
A patented restrictor mechanism integrated into the hinge link provides controlled door movement with adjustable stops at 105°, 95°, and 85°, preventing overextension and protecting surrounding surfaces. - Premium Nickel Plating Finish
Finished with high-grade nickel plating that not only enhances aesthetics but also offers proven durability. The finish has successfully passed 48 hours of Neutral Salt Spray Testing in accordance with ISO 9227:2022/Amd.1:2024, achieving Grade 10 performance, ensuring outstanding resistance against corrosion and wear. - Tested Durability
The hinge has passed durability testing under clause 17.6 of ANSI/BIFMA X5.5-2021, withstanding 100,000 operating cycles, demonstrating long-term performance under intensive use. - Smooth Soft-Close Motion
Equipped with a premium hydraulic damper, ensuring quiet and smooth soft-closing for a refined user experience. - Robust Construction
Built with thick, high-quality materials designed for strength, stability, and reliability in heavy-duty applications. - Easy Installation
Features a quick-connect latch clip for fast, secure installation and effortless removal when needed.
Why Choose T-X?
With its smart gap alignment, integrated angle restrictor, nickel plating certified for corrosion resistance, and 100,000-cycle tested durability, the T-X Full Overlay Hinge delivers precision, reliability, and long-lasting quality. It’s not just a hinge—it’s a performance-driven solution that raises the standard for modern cabinetry.

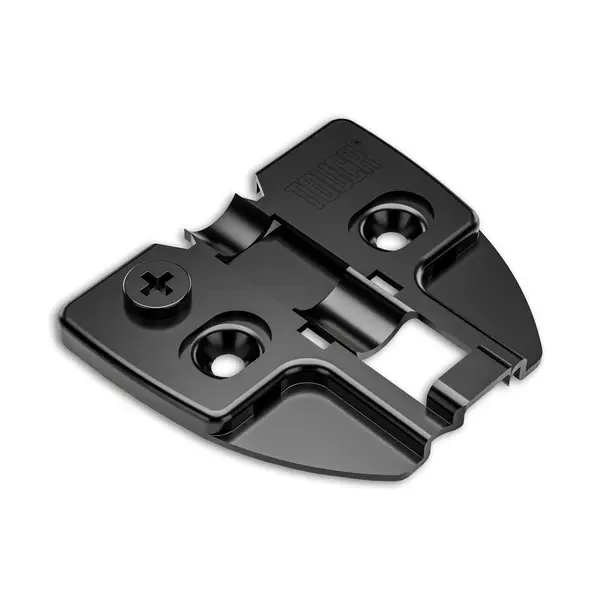

Compatible Mounting Plates and Accessories
