Description
The TOUCH TCH-311012 129.S Soft-Close Vertical Parallel Lift-Up Door System is a lift-up door mechanism for wall and tall cabinets. Lift systems are matched to door weight and cabinet height, so check both against the ranges given below, together with the features and compatible TOUCH hardware.
Soft-Close Vertical Parallel Lift-Up Door System Features & Specifications — TCH-311012 129.S
Vertical Parallel Lift-Up Motion
Opens in a synchronized vertical path—perfect for overhead or wall-mounted cabinets.
Free-Stop Holding Range: 60°–110°
Allows the door to remain fixed at any angle within this range for safer, easier access.
Adjustable Soft-Closing Damping for Lift-Up Door Systems
Built-in damper with customizable resistance gives smooth and quiet closure.
Force Adjustment for Lift-Up Door Systems
Fine-tune the lift support to match the door’s weight using the integrated adjustment screw.
No Hinges Required
Simplifies construction and design with a hinge-free system.
3D Adjustment Capability
Built-in height, side, and tilt adjustment points allow for easy and precise alignment.
Compact, Space-Saving Design for Lift-Up Door Systems
Fits clean into various cabinet designs without compromising interior space.
Technical Specifications
- Cabinet Height (KH): (16″) 410 mm – (24″) 600 mm
- Front Weight (FW): 2.4–10.5 kg

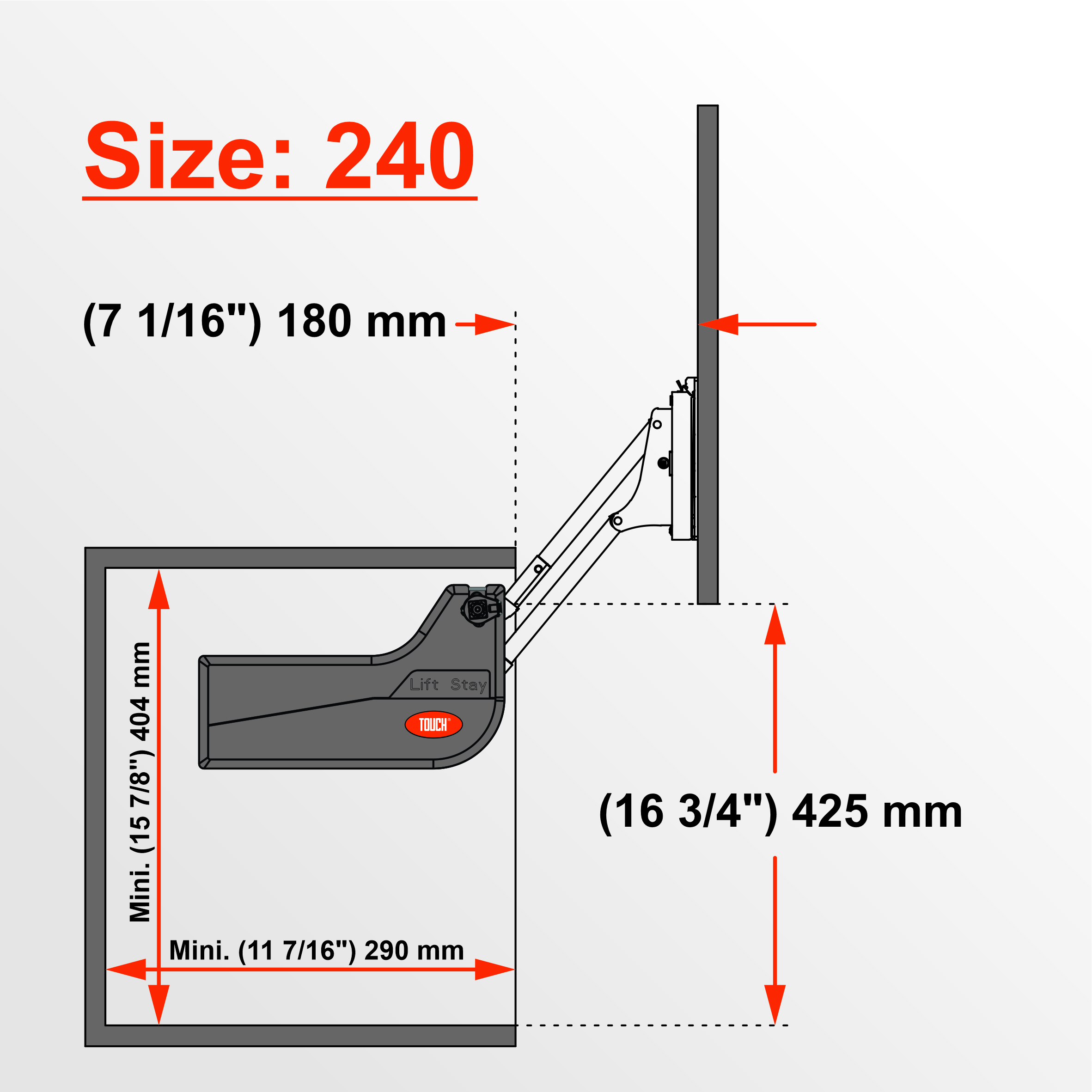

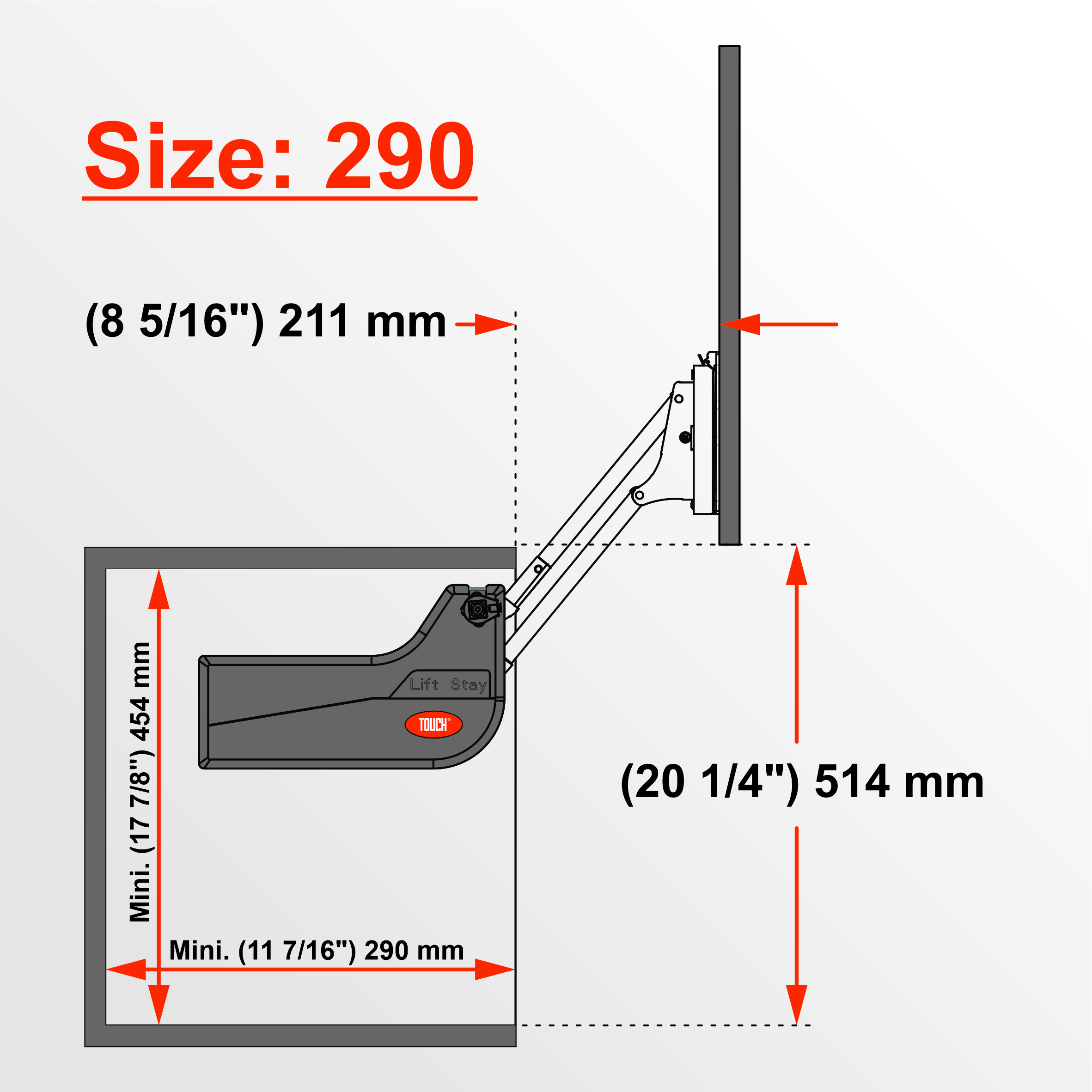

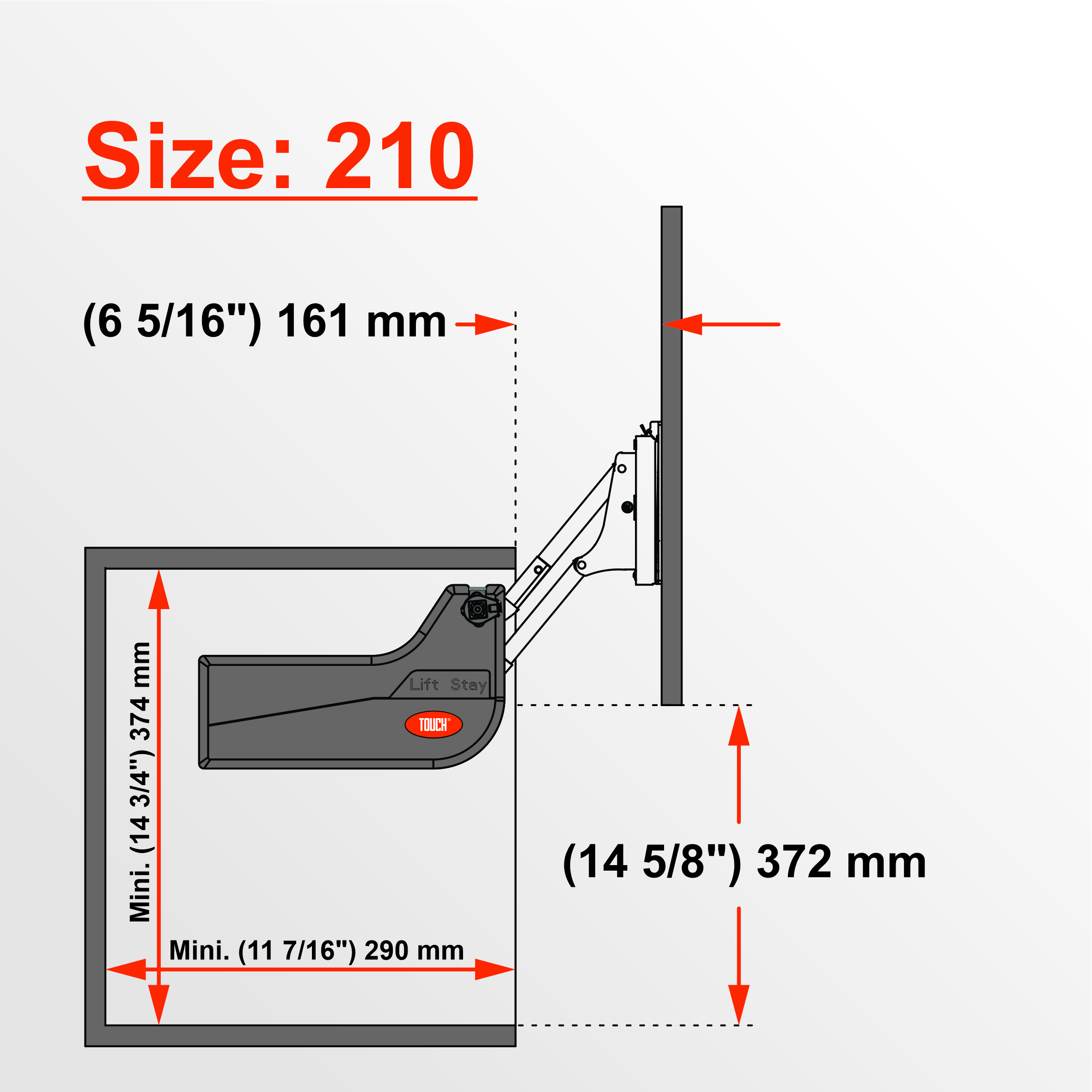

- Minimum Cabinet Depth: (11 7/16″) 290 mm
- Maximum Cabinet Width: (47 1/4″) 1200 mm
- Free-Stop Range: 60°–110°
- Adjustment Tolerances: Height: ±2.0 mm; Side: ±1.5 mm; Tilt: ±1.5 mm
Additional Details
- Decorative Cover Options: Available in dark gray, light gray, and white.
- Sold as a Set: Includes one left-side and one right-side lift mechanism for full installation.
Where to Use a Soft-Close Vertical Parallel Lift-Up Door System
The TCH-311012 129.S is suitable for residential and commercial cabinetry, including:
- Kitchen wall units with lift-up or flap doors
- Overhead storage in laundries and utility rooms
- Media consoles and bar cabinets
- Office and reception storage
Compatible Products — TCH-311012 129.S

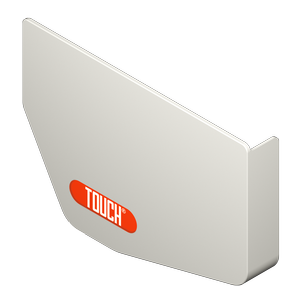

Use the TCH-311012 129.S with the matching TOUCH cover cap for this system, and check your door weight and cabinet height against the ranges given above before ordering.
Why Choose the TOUCH TCH-311012 129.S Soft-Close Vertical Parallel Lift-Up Door System
The TCH‑311012 129.S combines modern lift-up function with clean motion control. With adjustable soft-closing, a free-stop range between 60°–110°, and no need for hinges, it’s the ideal solution for contemporary cabinetry that prioritizes smooth operation, clean appearance, and long-term reliability. Built for both residential and commercial applications, this system is simple to install, easy to adjust, and engineered to last.
