Description

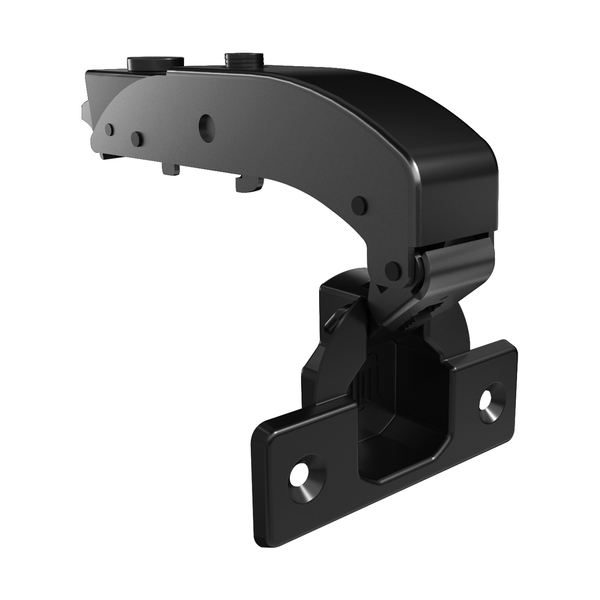

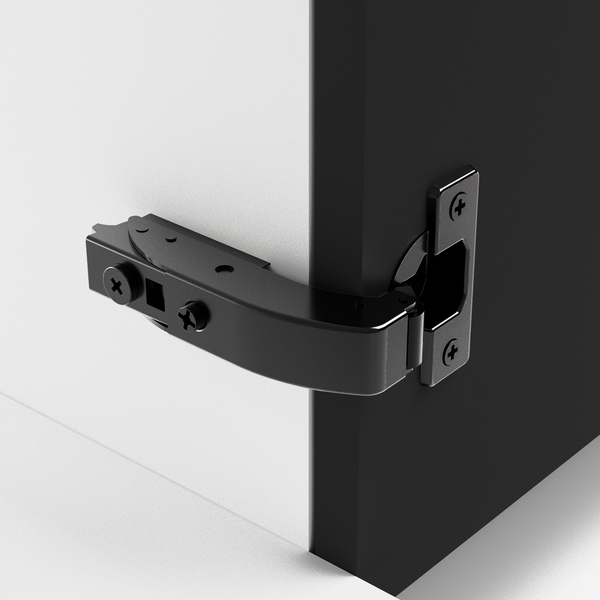

The TOUCH TCH-11400 T-X 090.I.45.S GM T-X Soft-Close Inset Blind Corner Hinge is a concealed European-style cabinet hinge, made for blind corner cabinets. Match the arm profile to the way your door sits on the cabinet, then pair it with the mounting plate height that gives the overlay or inset reveal you want. The features, specifications and compatible TOUCH hardware are set out below.
T-X Soft-Close Inset Blind Corner Hinge Features & Specifications — TCH-11400 T-X 090.I.45.S GM
Smart Gap Alignment & Controlled Multi-Dimensional Adjustment for Cabinet Hinges
Achieving a visually flawless, uniform reveal is exceptionally difficult in blind corner installations where tight tolerances are the norm. This hinge solves that issue with its integrated, controlled adjustment system made with advanced even gaps that stay put. As installers fine-tune the door’s lateral, vertical, or depth positioning, the hinge mechanism securely locks its settings, preventing sagging, shifting, or alignment drift over time. The rigidity of the thick steel body makes sure that these settings remain permanently locked under continuous daily usage.
Advanced Soft-Close Hydraulic Damping Technology for Cabinet Hinges
Fitted with an ultra-responsive, built-in hydraulic damper, this blind corner hinge brings quiet luxury to corner cabinet access. The soft-close mechanism is fully enclosed within the hardware frame, absorbing closing force smoothly as the door closes. Regardless of the closing force applied, the integrated damper gives a slow, controlled, and completely silent slowing. This slam-free experience not only introduces a high-end feel but also significantly reduces physical stress and structural vibration on the cabinet panels and carcass frame.
105° Integrated Opening Angle Restrictor
Unlike standard cabinet hardware that relies on external clips to limit door swing, the T-X Hinge has a heavy-duty opening angle restrictor integrated directly into the core of the hinge link mechanism. This built-in engineering feature masterfully controls the standard 105° opening swing. By physically preventing the door from overextending, it protects adjacent walls, neighboring cabinet doors, or delicate decorative panels in tight corner layouts.
High-Capacity Standard Cup Profile & Extended Boring Range: 3mm to 7mm
This model uses a full-sized 35mm hinge cup diameter with a standard 11.5mm drilling depth, giving a strong physical anchoring foundation within standard wood or composite doors from 14mm up to 21mm thick. Fabricators also benefit from an extended boring distance range of 3mm to 7mm from the door edge, giving kitchen manufacturers the extra dimensional flexibility needed to calibrate exact inset tolerances and flawless reveals.
Clean Mounting Plate Integration
Streamlining field labor and minimizing component overhead is core to the TOUCH hardware ecosystem. This inset blind corner hinge is engineered to be fully compatible with existing standard mounting plates. This smart compatibility means millworkers, installers, and maintenance crews can execute quick replacements, easy upgrades, or swap existing standard hinges out for specialized blind corner variants without needing to modify or replace the pre-installed cabinet-box mounting hardware.
Durable Construction with GM (Gunmetal) Finish
Engineered for demanding architectural applications, high load-bearing demands, and heavy-use environments, this variant of the T-X hinge is built from thick-gauge steel with a GM (gunmetal) plated finish. This structural material choice gives excellent tensile resistance and excellent dimensional stability under environmental fluctuations. The thick steel body makes sure that the heavy blind corner arm linkage resists warping, twisting, or metal fatigue, guaranteeing a strong metallic feel and reliable, lifelong performance.
Where to Use a T-X Soft-Close Inset Blind Corner Hinge
The TCH-11400 T-X 090.I.45.S GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X 090.I.45.S GM
Pair the TCH-11400 T-X 090.I.45.S GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X 090.I.45.S GM T-X Soft-Close Inset Blind Corner Hinge
The TOUCH T-X Inset Blind Corner Hinge offers a smarter, highly specialized engineering solution for custom millwork and wood cabinetry requiring standard 35mm cup configurations. By packing advanced technical features—such as integrated angle limitations, hydraulic soft-close slowing, micro-stabilized gap adjustments, and a variable boring range up to 7mm—into a high-capacity footprint, it elegantly resolves the structural and tight fits presented by modern blind corner assemblies.
