Description

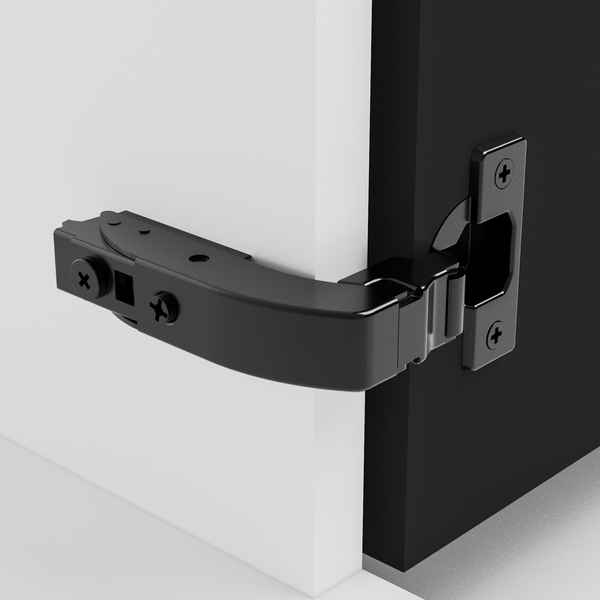

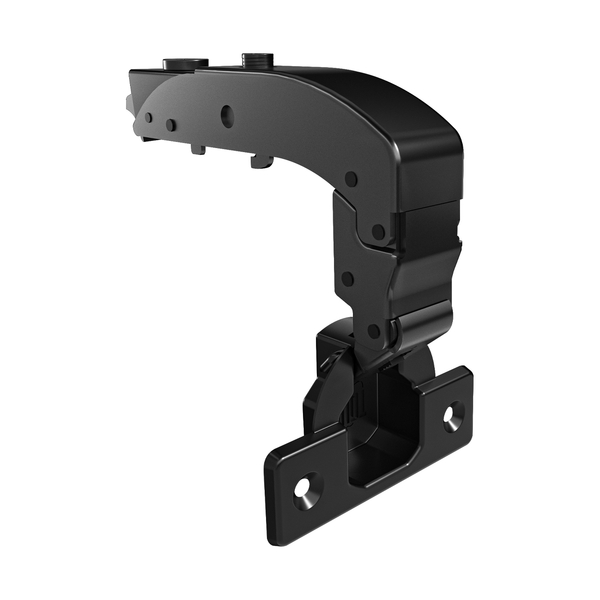

The TOUCH TCH-11400 T-X 090.F.45.S GM T-X Soft-Close Overlay Blind Corner Hinge is a concealed European-style cabinet hinge, made for blind corner cabinets.
It gives high-precision alignment and reliable function for custom blind corner cabinetry and specialized millwork. Made to resolve tight fits in corner layouts, this premium hinge combines an integrated opening angle restrictor within the hinge link with fine gap adjustment. Built from thick-gauge steel with a GM (gunmetal) plated finish, it gives quiet, hydraulic soft-close slowing, excellent long-term stability, and easy operation for high-end residential and commercial kitchens and furniture.
T-X Soft-Close Overlay Blind Corner Hinge Features & Specifications — TCH-11400 T-X 090.F.45.S GM
105° Opening Angle
105° smooth opening swing with an opening angle restrictor integrated directly into the hinge link.
Blind Corner Application
Specially made arm profile shaped for overlay blind corner cabinet configurations.
Hydraulic Soft-Close for Cabinet Hinges
Built-in hydraulic damper enclosed within the frame for silent, controlled, and slam-free door closing.
Controlled Gap Adjustment for Cabinet Hinges
Advanced adjustment system for tight even gaps that stay put to prevent door sagging or alignment drift over time.
Standard Hinge Cup Profile: 14mm to 21mm
35mm cup diameter with an 11.5mm height, giving a solid hold for door thicknesses ranging from 14mm to 21mm.
Flexible Boring Distance: 3mm to 7mm
Adjustable range from 3mm to 7mm for exact edge calibration during installation.
Cross-Compatible Mounting for Cabinet Hinges
Fully compatible with existing standard mounting plates for streamlined assembly and quick job site updates.
Heavy-Duty GM Construction for Cabinet Hinges
Thick-gauge steel with a GM (gunmetal) plated finish that resist surface oxidation, twisting, metal fatigue, and thermal expansion.
Where to Use a T-X Soft-Close Overlay Blind Corner Hinge
The TCH-11400 T-X 090.F.45.S GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X 090.F.45.S GM
Pair the TCH-11400 T-X 090.F.45.S GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X 090.F.45.S GM T-X Soft-Close Overlay Blind Corner Hinge
You get 105° opening angle, blind corner application and hydraulic soft-close for cabinet hinges in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
