Description

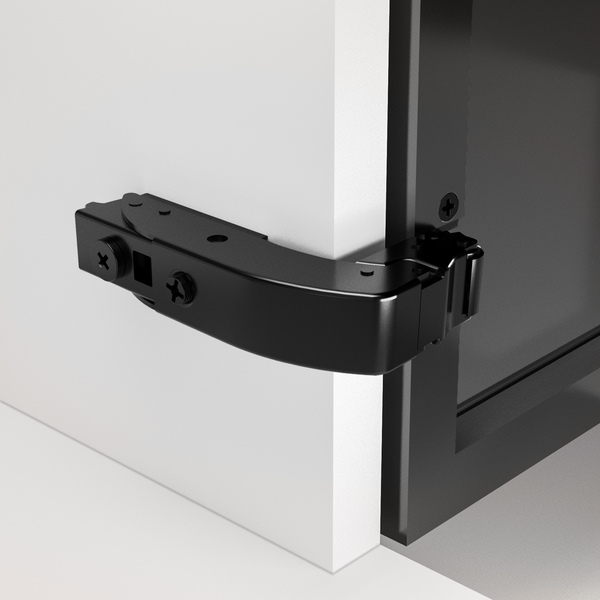

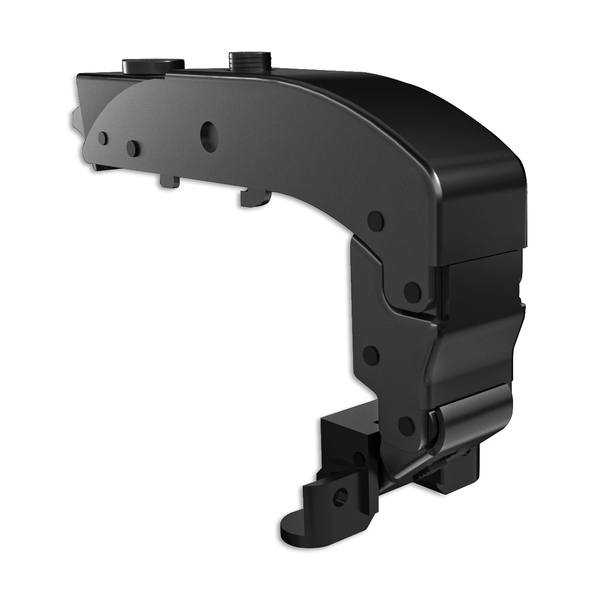

The TOUCH TCH-11400 T-X 090.F.28.A GM T-X Soft-Close Overlay Blind Corner Aluminum Frame Hinge is a concealed European-style cabinet hinge, made for blind corner cabinets. Match the arm profile to the way your door sits on the cabinet, then pair it with the mounting plate height that gives the overlay or inset reveal you want. The features, specifications and compatible TOUCH hardware are set out below.
T-X Soft-Close Overlay Blind Corner Aluminum Frame Hinge Features & Specifications — TCH-11400 T-X 090.F.28.A GM
105° Specialized Overlay Blind Corner Geometry
Features custom arm geometry designed to clear adjacent framework cleanly throughout its entire 105° opening swing, preventing catching, binding, or colliding against the blind panel face.
Soft-Close Hydraulic Damping Technology for Cabinet Hinges
Integrated hydraulic damper takes the force out of the closing door to give a smooth, silent, and slam-free closing motion—protecting delicate glass panels and slim aluminum frames from vibration.
Durable Construction with GM (Gunmetal) Finish
Built from thick-gauge steel, GM (gunmetal) plated, for high strength, load-bearing reliability, and resistance against warping or metal fatigue under heavy daily use.
Precision Micro-Adjustment for Cabinet Hinges
Advanced multi-dimensional alignment (lateral, vertical, and depth) with settings that hold, for crisp, uniform reveals across tight-tolerance corner installations.
Optimized Narrow Frame Compatibility: 19mm to 22mm
Engineered with a specialized 28mm hinge head drilling dimension to integrate flawlessly into slim metallic profiles ranging from 19mm to 22mm in width.
Clean Mounting Plate Integration
Fully compatible with standard cabinet box mounting plates for fast, easy retrofits and upgrades without re-drilling or replacing existing box hardware.
Where to Use a T-X Soft-Close Overlay Blind Corner Aluminum Frame Hinge
The TCH-11400 T-X 090.F.28.A GM is suitable for residential and commercial cabinetry, including:
- Kitchen cabinets and pantry units
- Bathroom vanities and linen cabinets
- Wardrobes, media units and built-in furniture
- Office and reception furniture
- Custom cabinetry
Compatible Products — TCH-11400 T-X 090.F.28.A GM
Pair the TCH-11400 T-X 090.F.28.A GM with the matching TOUCH mounting plate for its series. Plate height sets the final door overlay or inset reveal, so confirm door thickness and required overlay before ordering.
Why Choose the TOUCH TCH-11400 T-X 090.F.28.A GM T-X Soft-Close Overlay Blind Corner Aluminum Frame Hinge
You get high-durability gm plate construction and clean mounting plate integration in one cabinet hinge — a concealed European-style cabinet hinge that is made to fit the rest of the TOUCH range and to keep working every day in kitchens, bathrooms and built-in furniture.
