Description
The TOUCH TCH-313000 337.S Free-Stop Slim Upward Door Lift System is a lift-up door mechanism for wall and tall cabinets. Lift systems are matched to door weight and cabinet height, so check both against the ranges given below, together with the features and compatible TOUCH hardware.
Free-Stop Slim Upward Door Lift System Features & Specifications — TCH-313000 337.S

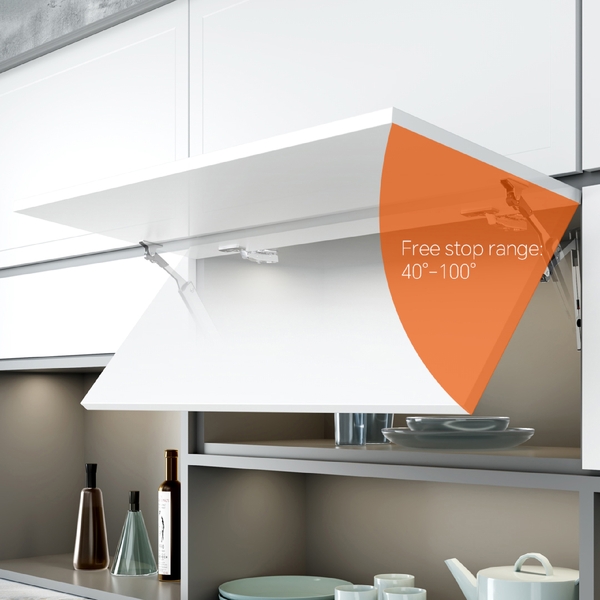

Free-Stop Functionality: 40° to 100°
Keeps the door securely positioned at any angle between 40°–100°, supporting hands-free access and ease of use.

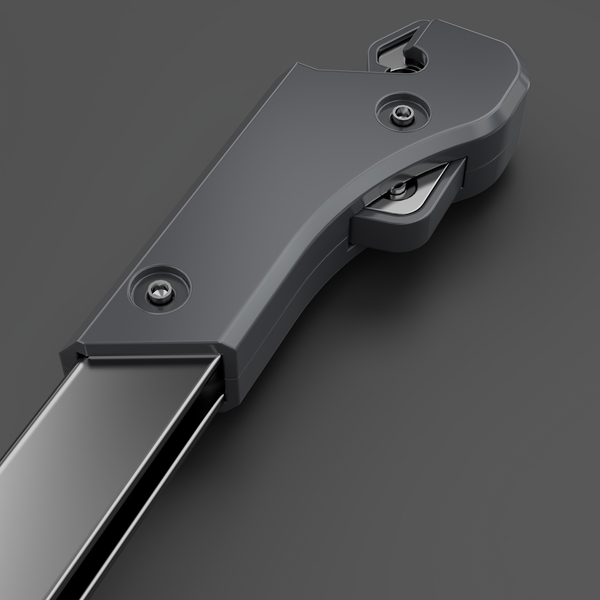

Slim Compact Design for Lift-Up Door Systems
Suitable for shallow cabinets with limited installation space.

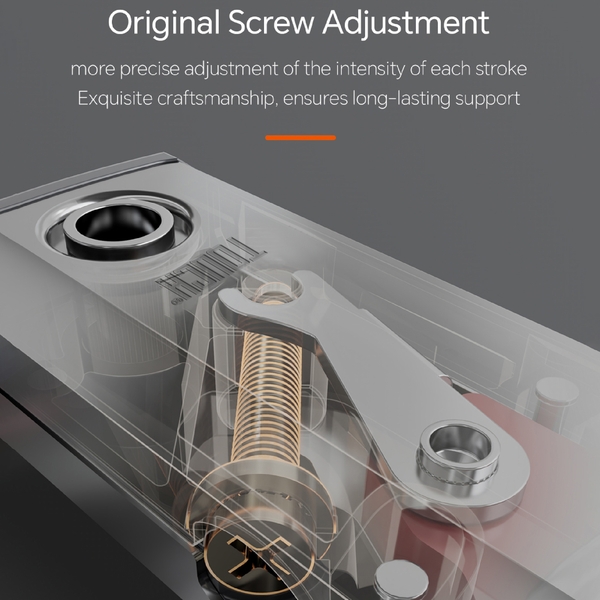

Force Adjustable for Lift-Up Door Systems

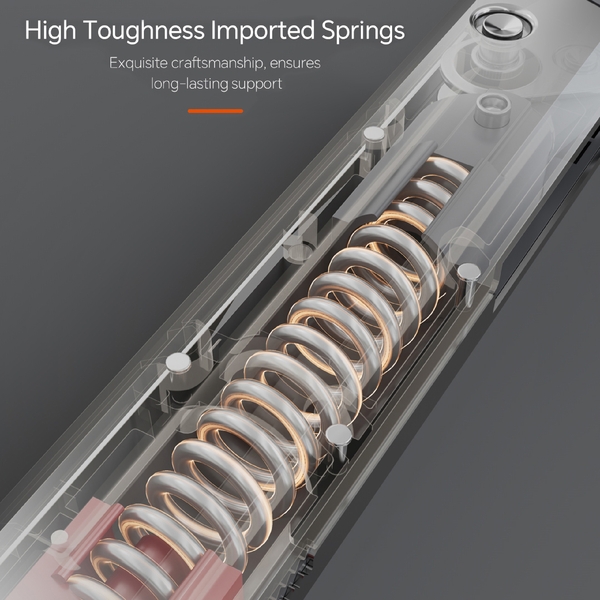

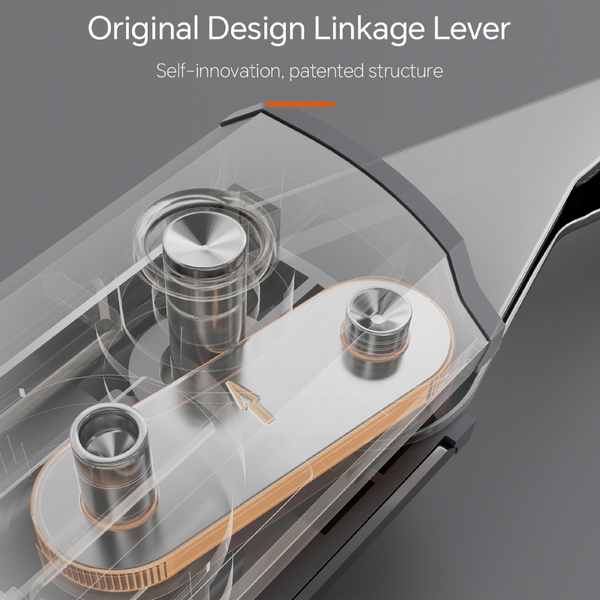

The internal mechanism allows precise adjustment to support varying door weights, for consistent and smooth lift performance.

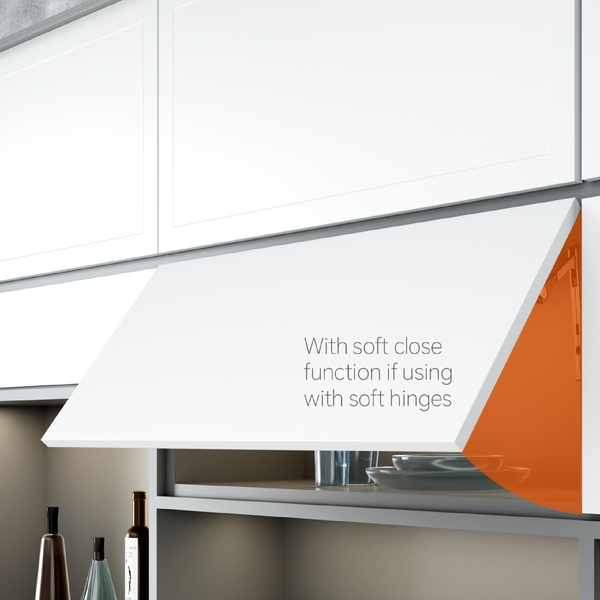

85° Recommended Use with T‑X Hinges
Use with the T‑X hinge series, which features integrated opening angle restrictors (85° / 95° / 105°) and built-in soft-close function for enhanced door control and quiet closing performance.

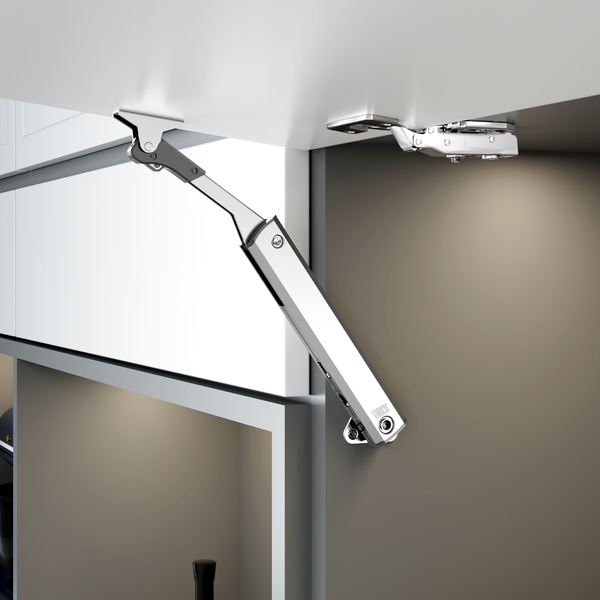

Hinge-Required System
Compatible with standard concealed hinges (sold separately).
Technical Specifications

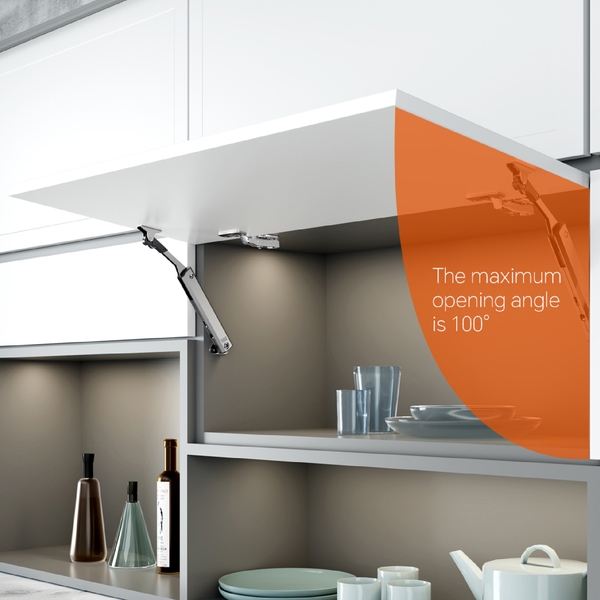

- Free-Stop Range: 40°–100°
- Minimum Cabinet Depth: (6″) 150 mm
- Cabinet Height (KH): (10¼”) 260 mm to (24″) 600 mm
- Cabinet Width: (12″) 300 mm to (71″) 1800 mm
- Front Weight Range: 1.4–10.5 kg (3–23 lb)
Additional Details
- Color Options: Nickel and Black
- Sold as Each: One mechanism per unit. Order one for each side (left and right).
- Application Areas: Ideal for overhead, wall-mounted, or shallow-depth storage cabinets.
Where to Use a Free-Stop Slim Upward Door Lift System
The TCH-313000 337.S is suitable for residential and commercial cabinetry, including:

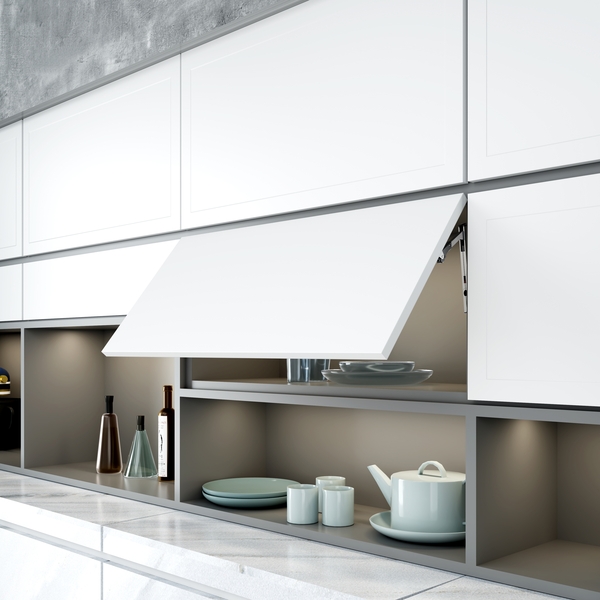

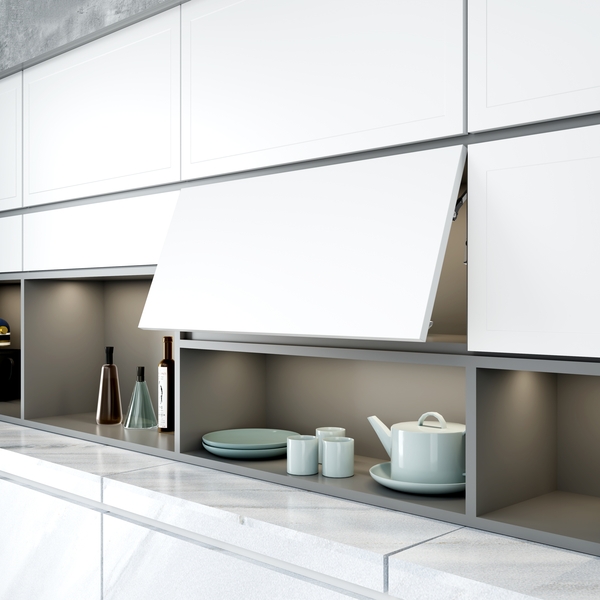

- Kitchen wall units with lift-up or flap doors
- Overhead storage in laundries and utility rooms
- Media consoles and bar cabinets
- Office and reception storage
Compatible Products — TCH-313000 337.S

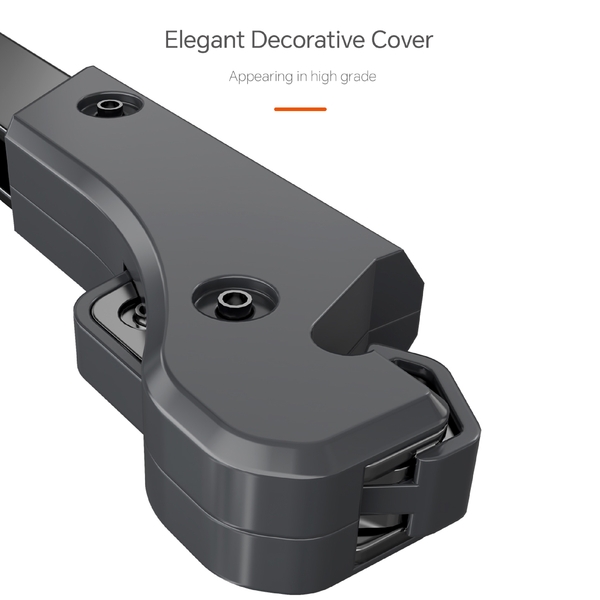

Use the TCH-313000 337.S with the matching TOUCH cover cap for this system, and check your door weight and cabinet height against the ranges given above before ordering.
Why Choose the TOUCH TCH-313000 337.S Free-Stop Slim Upward Door Lift System
The TCH‑313000 337.S offers a reliable and space-efficient lift-up solution with free-stop convenience, adjustable force control, and a minimal installation footprint. Designed to pair with the T‑X soft-close hinge system, this product gives a smooth, quiet, and safe feel in use. Perfect for both residential and commercial cabinetry where compact performance and clean design matter.
