Description
The TOUCH TCH-311011 023.S Free-Stop Soft-Close Lift-Up Door System is a lift-up door mechanism for wall and tall cabinets. Lift systems are matched to door weight and cabinet height, so check both against the ranges given below, together with the features and compatible TOUCH hardware.
Free-Stop Soft-Close Lift-Up Door System Features & Specifications — TCH-311011 023.S

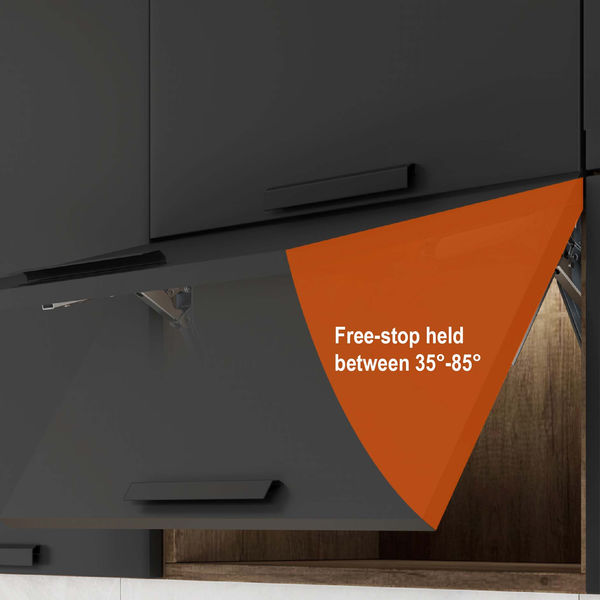

35° Free-Stop Functionality
The door remains fixed at any angle between 35° and 85°, letting safe, convenient, and hands-free access.

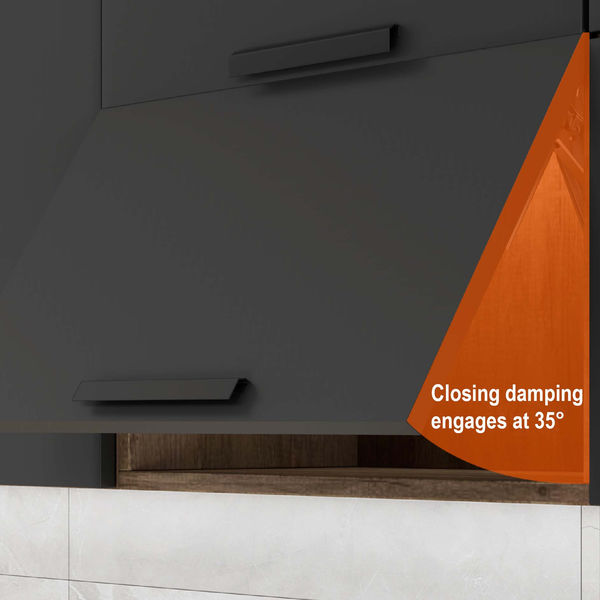

Adjustable Soft-Close Damping for Lift-Up Door Systems
Built-in damper gives smooth and quiet closing, with adjustable speed to match the weight of the front panel.

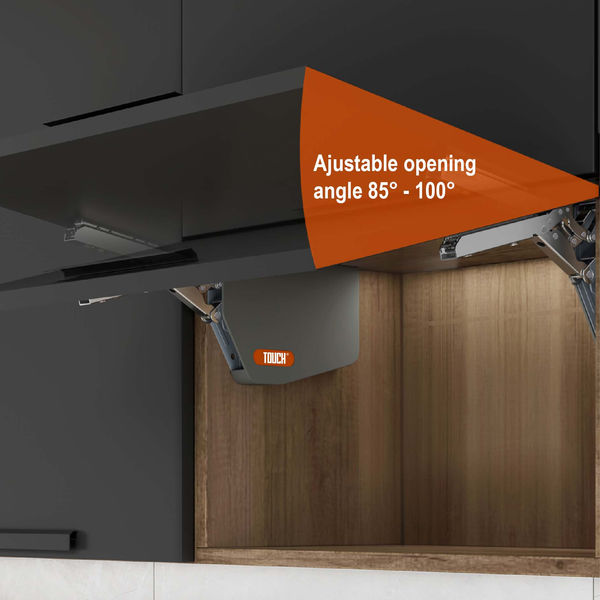

85° Opening Angle Adjustment
Opening angle is adjustable between 85° and 100°, letting customization based on user preference and space requirements.
Opening and Closing Force Adjustment for Lift-Up Door Systems
Integrated adjustment screw lets precise tuning of lift and closing force, for dependable performance regardless of front weight.
No Hinges Required
Operates independently without the need for traditional side hinges, simplifying cabinet design and installation.

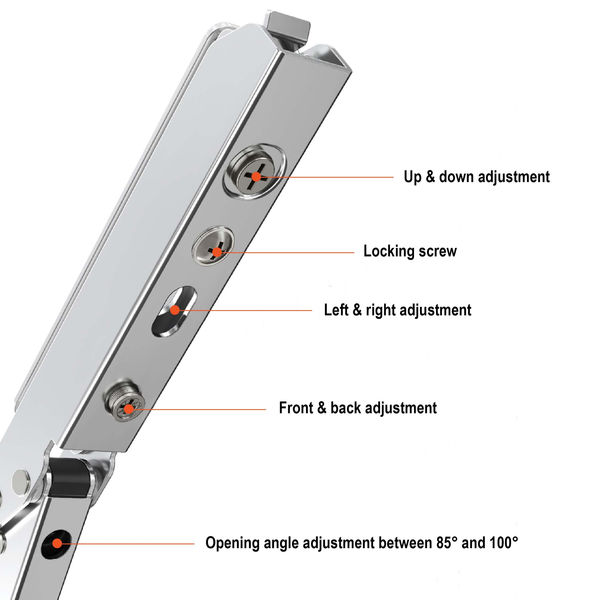

3D Adjustment Capability
Built-in height, side, and tilt adjustments make door alignment quick and accurate during installation.
Compact, Space-Saving Design for Lift-Up Door Systems
Minimal footprint lets seamless integration into a wide range of cabinet sizes.
Additional Details
- Decorative Cover Options: Available in dark gray, light gray, and white colors.
- Sold as a Set: Includes one left-side and one right-side mechanism for complete installation.
Where to Use a Free-Stop Soft-Close Lift-Up Door System
The TCH-311011 023.S is suitable for residential and commercial cabinetry, including:
- Kitchen wall units with lift-up or flap doors
- Overhead storage in laundries and utility rooms
- Media consoles and bar cabinets
- Office and reception storage
Compatible Cabinet Dimensions — TCH-311011 023.S
- Cabinet Height: 300–800 mm
- Front Weight: 1.3–20.0 kg
- Minimum Cabinet Depth: 260 mm
Why Choose the TOUCH TCH-311011 023.S Free-Stop Soft-Close Lift-Up Door System
The TCH-311011 023.S Free-Stop Soft-Close Lift-Up Door System combines precision engineering, flexible adjustment, and refined design into a reliable lifting solution for modern cabinetry. With hinge-free operation, adjustable motion control, and clean visual finishes, it gives excellent function and a premium feel in use for both residential and commercial applications.
