Description

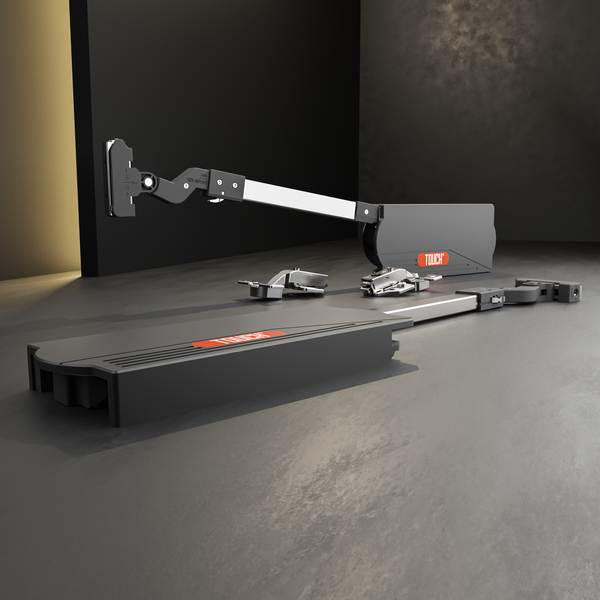

The TCH‑311013 325.S is a refined, soft-opening, horizontal bi-fold lift-up system engineered for wide and tall cabinet doors. Designed with precision, safety, and flexibility in mind, it supports a wide range of cabinet dimensions and is ideal for kitchens, storage spaces, and modern cabinetry environments.
Key Features
- Bi-Folding Double Door Mechanism
Allows two connected doors to lift upward in a synchronized, compact motion. - Soft Opening Function

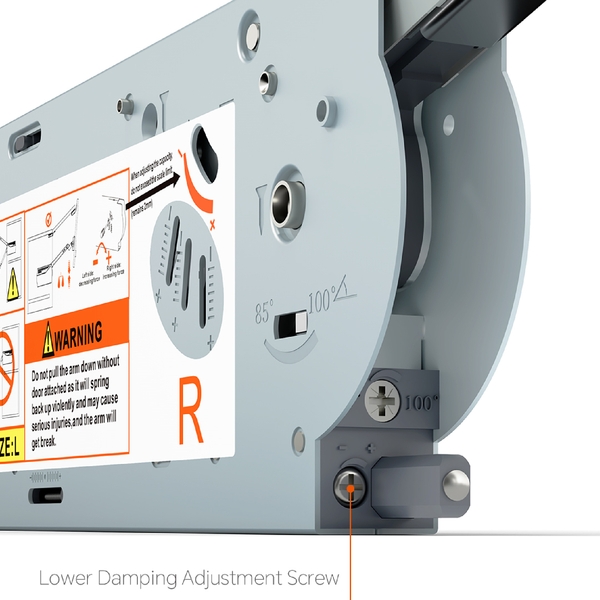

Smooth and quiet upward motion enhances user comfort and prevents abrupt movement. - Adjustable Soft-Close Damping

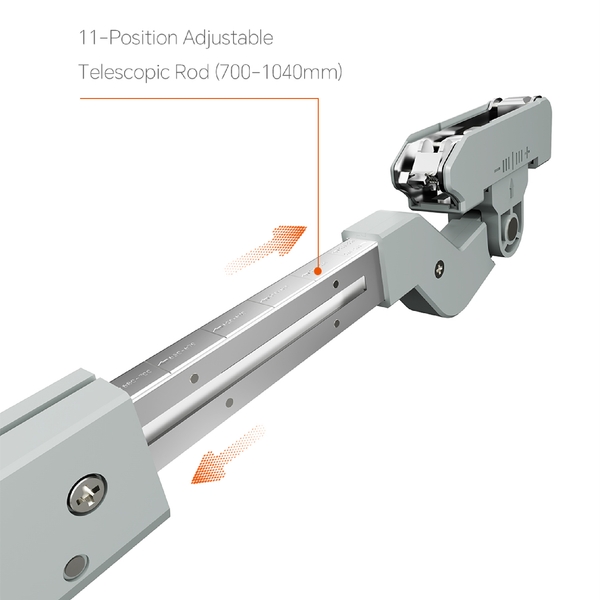

The built-in damper allows you to fine-tune the closing speed and strength. - Telescopic Arm Adjustment
Supports front panel heights from 700 mm to 1040 mm (28″–41″) with no need to replace or change the arm. - Opening Angle Adjustment

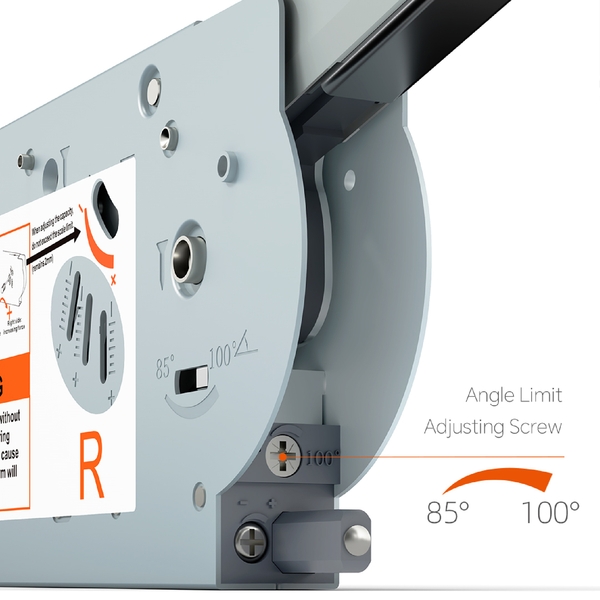

Adjustable from 85° to 100° to match varying ceiling heights and cabinet positions. - Top Door Hinges Required
Operates with additional top hinges (sold separately), compatible with most standard hinge systems. - Force Adjustment
Integrated screw mechanism enables precise force tuning for optimal performance based on door weight. - 3D Alignment Capability
Built-in adjustments for height, side, and tilt for easy and accurate door alignment. - Finger Safety Feature in Bottom Door Hinge
Designed to reduce the risk of finger injuries during use, especially when folding or closing the door—a crucial safety enhancement built into the bottom hinge system. - Compact, Minimalist Profile
Preserves internal storage space and blends seamlessly with contemporary cabinetry design.
Compatible Cabinet Dimensions
- Cabinet Height (KH): 700–1040 mm (28″–41″)
- Maximum Cabinet Width: 1400 mm (55″)
- Front Weight (FW): 4.7–17.0 kg (10.4–37.5 lb)
- Minimum Cabinet Depth: 290 mm
Finishing & Installation
- Decorative Cover Options
Available in dark gray, light gray, and white. - Sold as a Set
Includes one left-side and one right-side mechanism for complete bi-fold system installation.
Summary
The TCH‑311013 325.S Horizontal Bi-Folding Double Door System offers a powerful blend of flexible adjustment, smooth motion, and user-focused safety. With soft-opening, adjustable soft-closing, hinge-free side installation, and a dedicated finger safety feature in the bottom hinge, it’s the ideal solution for high-end cabinetry. Its telescopic adjustment, compatibility with wide and tall doors, and sleek form make it an excellent choice for kitchens and modern commercial spaces alike.
